Specification

Brand Name: lintratek
Origin: CN(Origin)

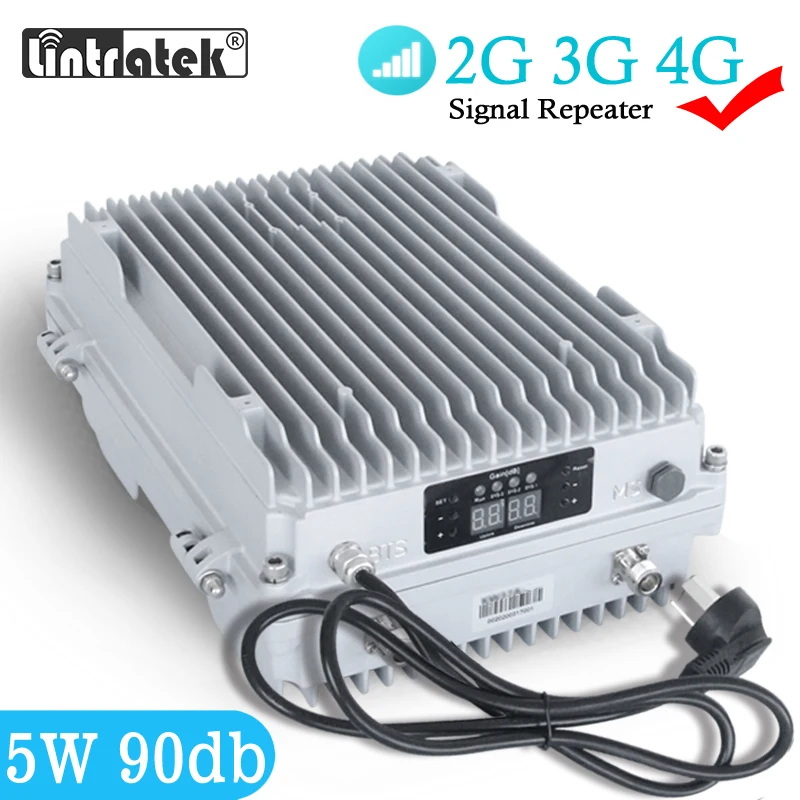

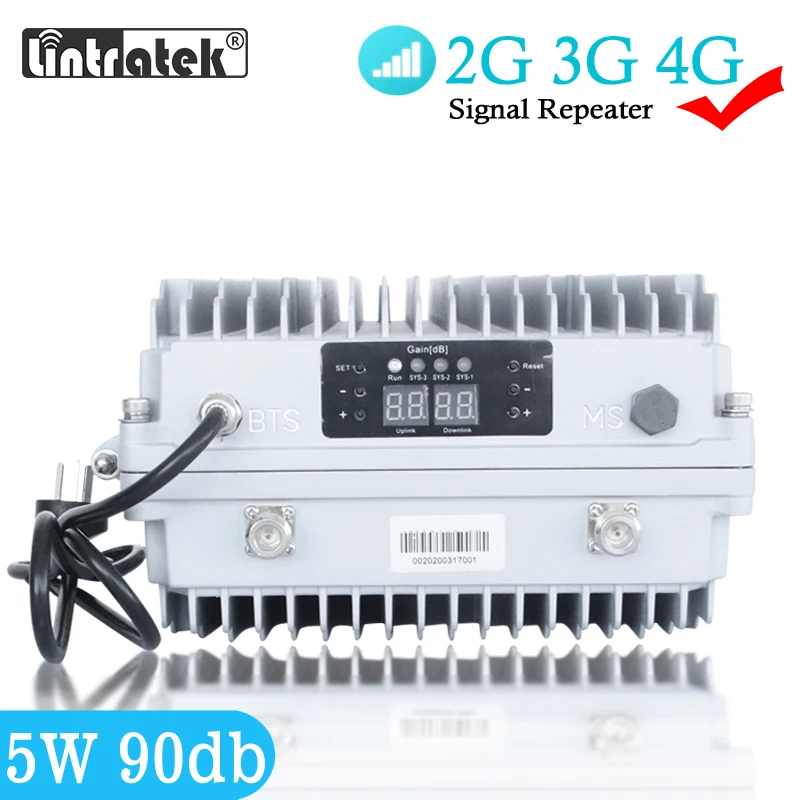

Model Number: KW37A series
Bandmode: As you chose
Gain: 90dB
Output Power: 37dBm
MGC function: Manual gain control (Avoid interference base station )
Coverage: 800-5000sqm without any barrier
Customized: All the band you want some different price.
Automatic Gain Control: over 20dB
Manual Gain Control: 31dB in step of 1dB
Ripple in Band: ≤4dB
Intermodulation Products: 9KHz~1GHz ≤ -36 dBm; 1GHz~12.75GHz ≤ -30 dBm
Spurious Emission: 9KHz~1GHz ≤ -36 dBm; 1GHz~12.75GHz ≤ -30 dBm
Noise Figure @ max. gain: ≤ 6 dB
VSWR: ≤2
MTBF: 50000 hours
Power Comsumption: < 20W
Impedance: 50 ohm
RF Connector: N-Female
Cooling: Heatsink Convection cooling
Installation Type: Wall Installation
Environment Conditions: IP40
Operating Temperature: -10℃ ~ 55℃
System: 2G 3G 4G GSM CDMA WCDMA LTE PCS AWS TDD FDD
Frequency: 700mhz 800mhz 900mhz 1700/2100mhz 1900mhz 2100mhz to 2600mhz
Customize: All signal frequency
