Specification

Brand Name: OLOEY
Origin: CN(Origin)
Item Length: 1m
Compatible: H3C
Fiber Type: Single Mode
Connector Type: Hybrid
Size: 215x155x68mm

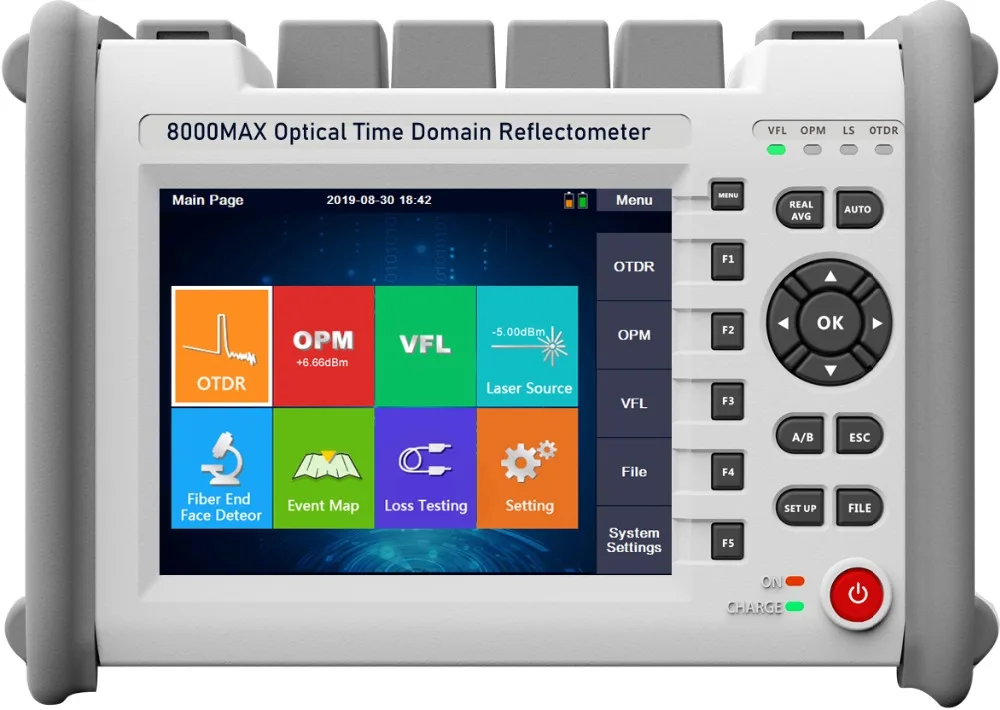

Model Number: 8000MAX
Weight: 1.1kg (Battery included)
Display: 5.6 inch touch-sensitive TFT-LCD Screen
Data Storage: 16GB (about 100000 curves)
Language: English in Default
Pulse Width: 3ns to 20us
Distance Range: 500m1km 2km 5km 10km 20km 40km 80km 120km 200km 240km
Sampling Resolution: Minimum 5cm
Sampling Point: Maximum 256000 points
Linearity: ≤0.05dB/dB
Averaging Time: 10s 15s 30s Customized
Scale Indication: X axis: 4~70m/div Y axis: 0.09~5dB/div
Loss Threshold: 0.01dB
Loss Resolution: 0.001dB
Distance Resolution: 0.01m
IOR Setting: 1.2000~1.5999 0.0001 step
Units: km mi ft

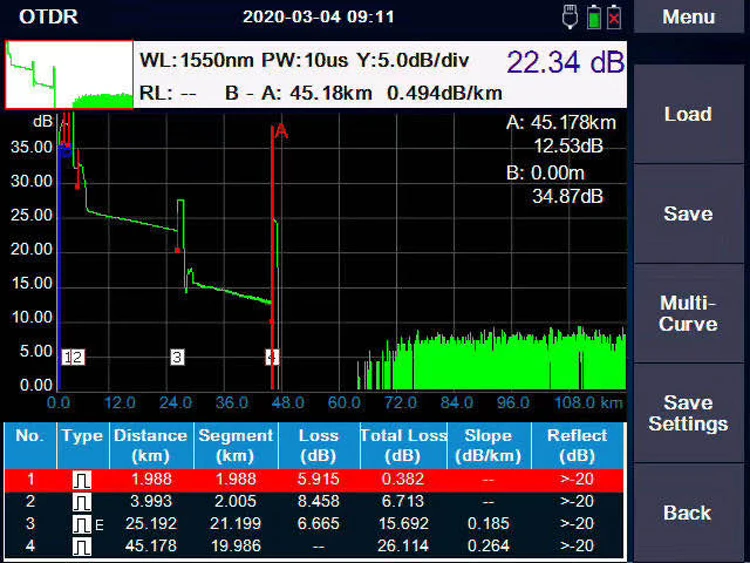

OTDR Trace Format: Telcordia universal SOR issue 2(SR-4731)
