Specification

Brand Name: OLOEY
Item Length: 1m
Compatible: Dell
Fiber Type: Single Mode
Connector Type: FC/UPC
Size: 175x105x45mm

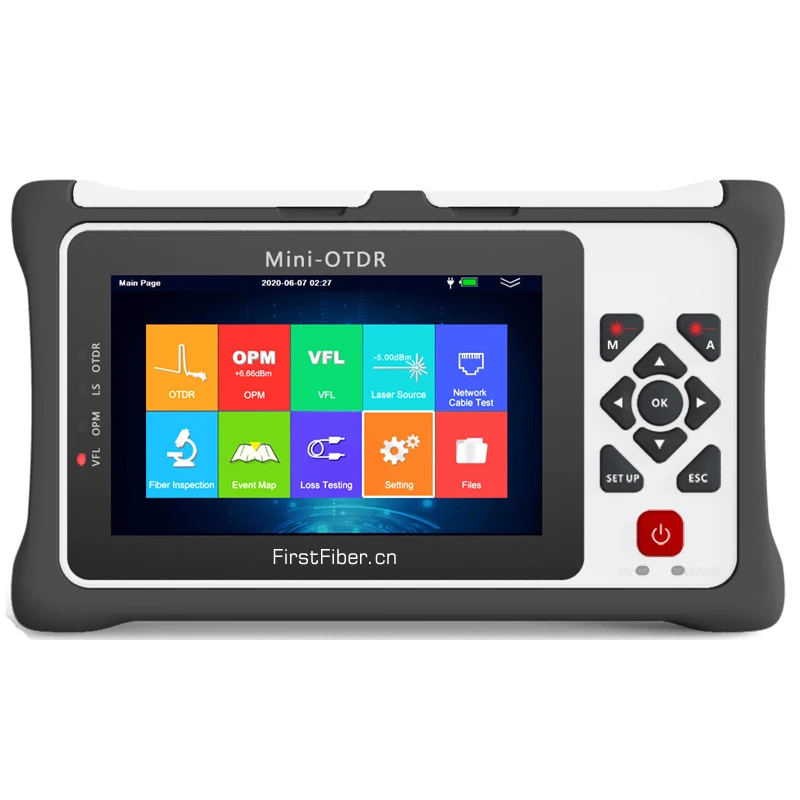

Model Number: 980EXT
Weight: 570g (Battery Included)
Screen Display: 4.3 inch touch-sensitive TFT Screen
Power Supply: Input: 100V(ac) to 240V(ac) 50~60Hz 0.8A; Output: 9V(DC) 2A
Battery: 5200mAh/3.7V Lithium battery Standby Time>10 hours
Back light: Common/Highligh/Power saving/Customized
Auto power off: Never/1min/5min/10min/30min/60min
Data Storage: SD Card: 8GB (about 100000 curves)
Language: Russian English Spanish French Korean Italian
Pulse Width: 5ns 10ns 20ns 50ns 100ns 200ns 500ns 1μs 2μs 5μs 10μs
Distance Range: 100m 500m2km 5km 10km 20km 40km 60km 90km
Sampling Resolution: Minimum 0.2m
Sampling Point: Maximum 64000 points
Linearity: ≤0.05dB/dB
Averaging Time: 10s 15s 30s Real Time Customized
Distance Resolution: 0.01m
Units: km miles kfeet

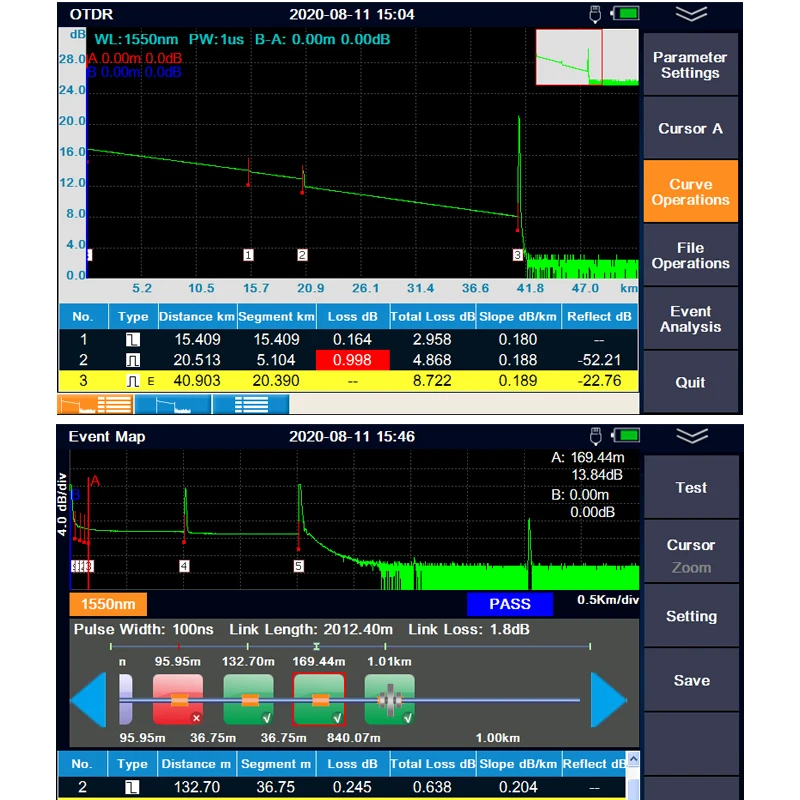

OTDR Trace Format: Telcordia universal SOR issue 2(SR-4731)
VFL Wavelength: 650nm
VFL Output Power: 10mw CLASSIII B
Range: 12km
Launching Mode: CW/2Hz

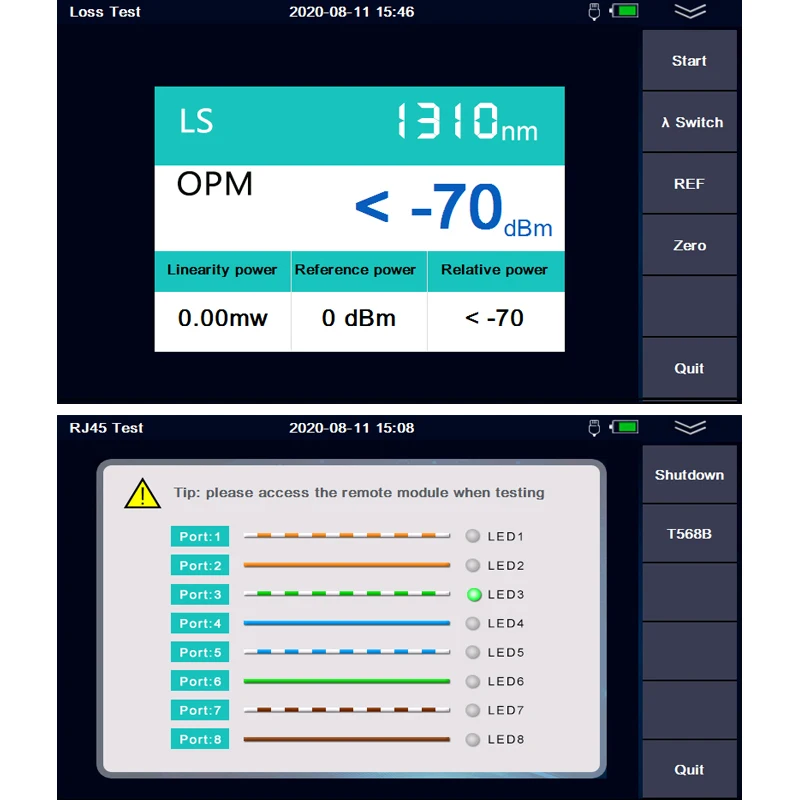

OPM Wavelength: 850/1300/1310/1490/1550/1625/1650nm
OPM Test Range: -70~+ 10dBm (in default) or -50~+ 26dBm
OPM Resolution: 0.01
Modulation: 270/1k/2k Hz
OLS Wavelength: Same as OTDR Wavelengths
OLS Output Power: -10 to -4dBm
OLS Output mode: CW/270/1k/2k Hz
