Specification

Brand Name: ANENG
DIY Supplies: Electrical
Origin: CN(Origin)
Model Number: AN8009 Digital Multimeter
AC Current: 999.9mA-9.999A-99.99uA-999.9uA

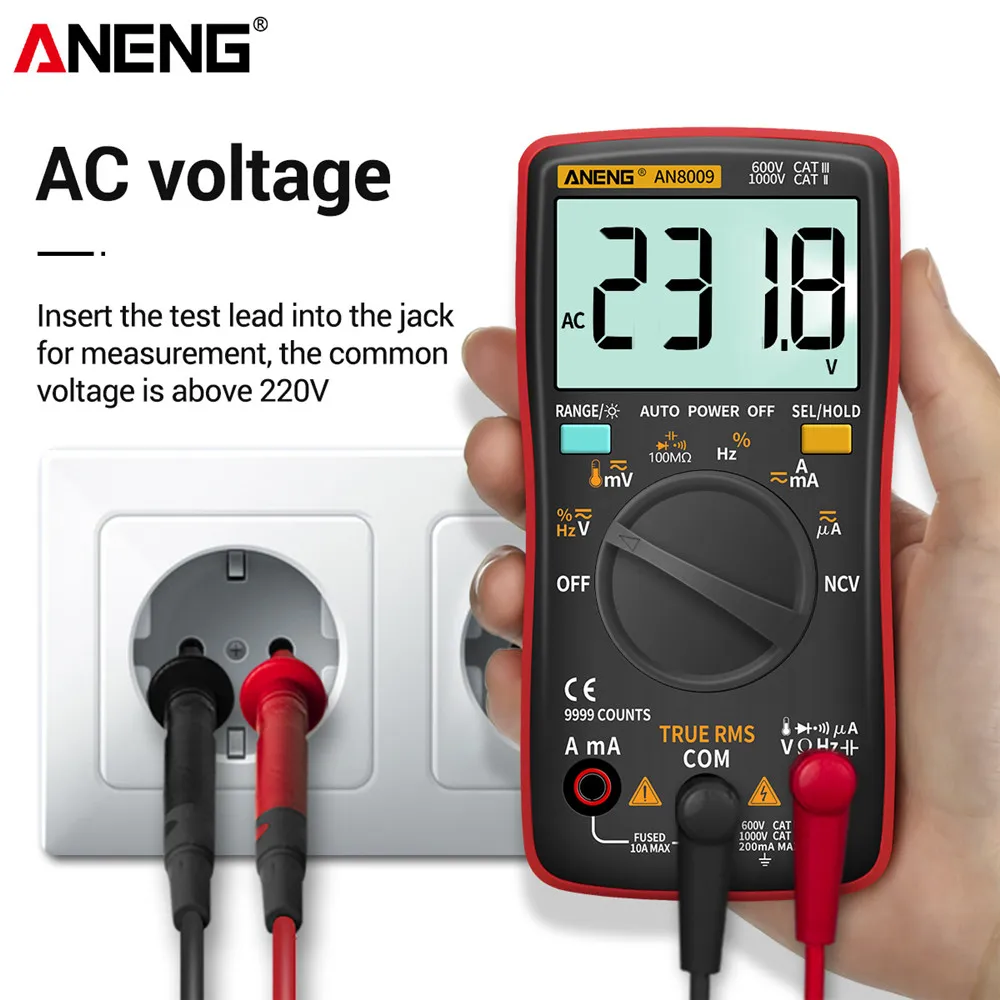

AC Voltage: 9.999mV-99.99mV-999.9mV-9.999V-99.99V-750.0V
Measuring Resistance Range: 99.99 Ohm>99.99M Ohm
Operating Mode: Auto/Manual Ranging
Measuring Inductance Range: No
Display Type: Digital Display
DC Current: 999.9mA-9.999A-99.99uA-999.9uA
DC Voltage: 9.999mV-99.99mV-999.9mV-9.999V-99.99V-750.0V
Measuring Capacitance Range: 9.999nF-99.99nF-999.9nF-9.999uF-99.99uF-999.9uF-9.999mF
Dimensions: 130x65x28 mm
Operating Temperature: 0 - 40 ℃
AC voltage: 9.999mV-99.99mV-999.9mV-9.999V-99.99V-750.0V
AC current: 999.9mA-9.999A-99.99uA-999.9uA
Duty Cycle: 1%~99%
Diode Test: Yes
Continuity: Yes
NCV: Yes
Temperature: -20~1000 C / -4~1832 F
