Specification

Type: Connectors
Package: Yes
Products Status: Stock
Model Number: ECAN
Power supply mode: USB

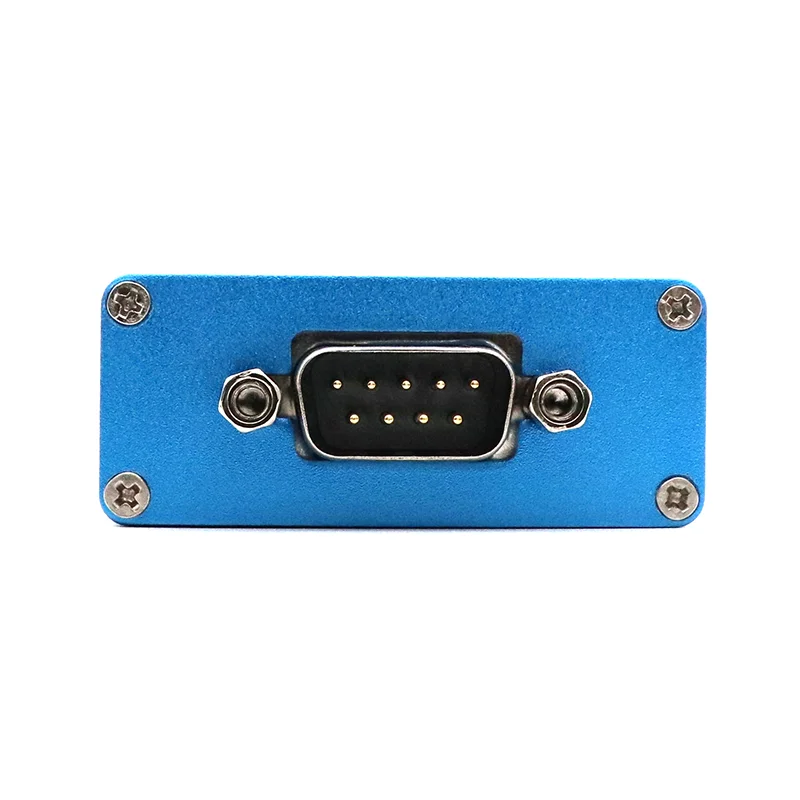

Connection Type: DB9
USB: USB2.0 full speed USB 1.1
CAN: ISO 11898 standard support CAN2.0A/B
CAN baud rate: 5Kbit/s~1Mbit/s
Isolation: 1000V DC-DC
CAN terminal resister: Integrated code switch to enable
Voltage: +5V DC (USB port)
Current: 130mA (Max)
Temperature: -40℃ ~+85℃
Humidness: 15%~90%RH without condensation
EMC test: EN 55024:2011-09 EN 55022:2011-12
IP grade: IP 20
Dimension: 55mm * 35mm * 14mm
Weight: 150g
