Specification

Brand Name: OLOEY
Item Length: 1m
Compatible: Huawei
Fiber Type: Single Mode
Connector Type: FC/UPC
Size: Standard
Model Number: FF-990PRO-S0
Dimension: 227x160x70mm
Display: LCD Touch Screen
Power Supply: 10V(dc) 100V(ac) to 240V(ac) 50~60Hz
Language: English in Default
Pulse Width: 5ns 10ns 50ns 160ns 320ns 500ns 1μs 5μs 10μs 20us
Distance Range: 0.5km 1km 2km 4km 8km 16km 32km 64km 128km 256km
Sampling Resolution: Minimum 16cm
Sampling Point: Maximum 65K
Linearity: ≤0.05dB/dB
Averaging Time: 5s 15s 30s 1min 2min 3min
Auto Off: off 10min 30min 60min
IOR Setting: 1.0000~2.0000

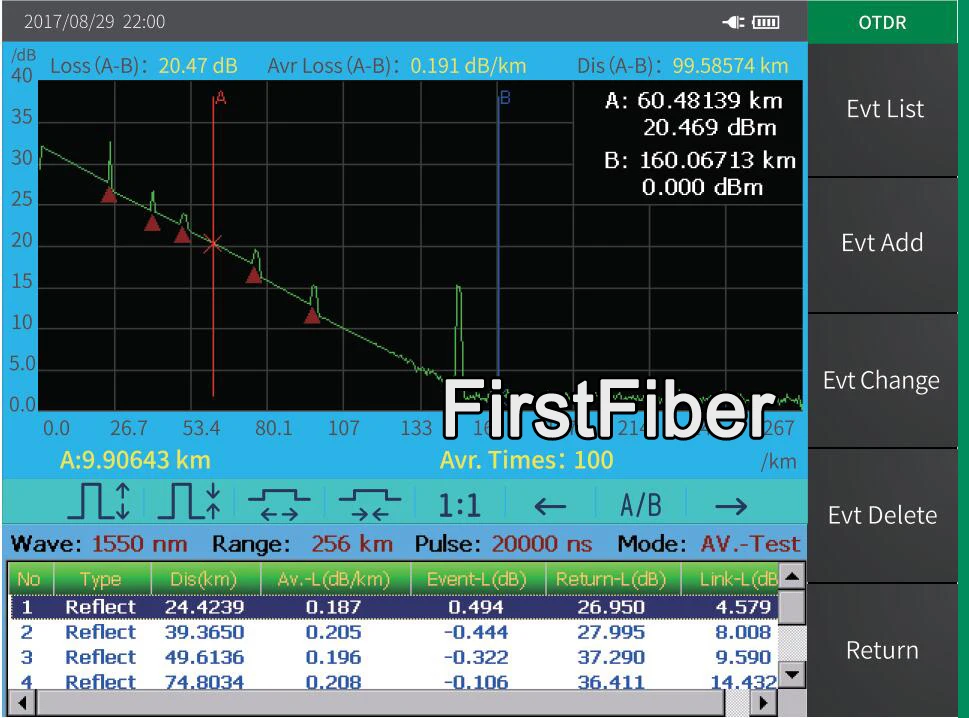

OTDR Trace Format: Telcordia universal SOR issue 2(SR-4731)

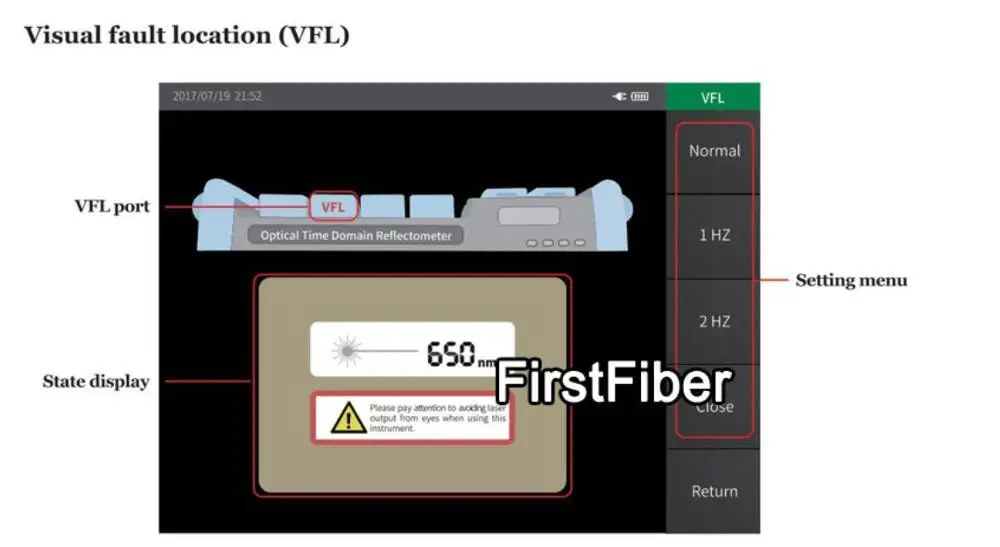

VFL Wavelength: 650nm
VFL Output Power: 10mW

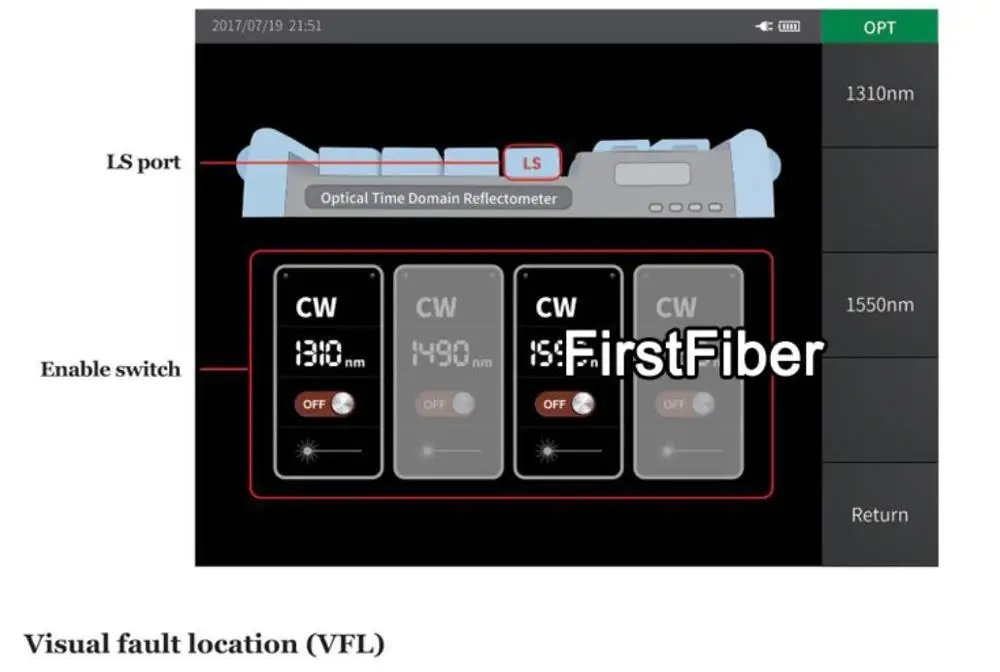

OLS Wavelength: 1310 and 1550nm

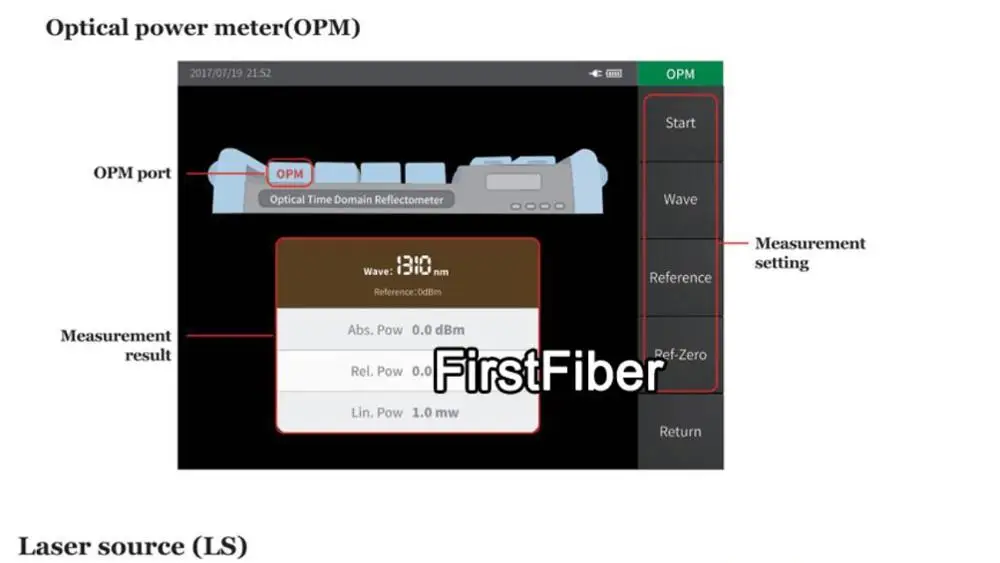

OPM Wavelength: 850 1300 1310 1490 1550 1625nm
