Specification

Brand Name: Khadas
Demo Board Type: ARM
Origin: CN(Origin)

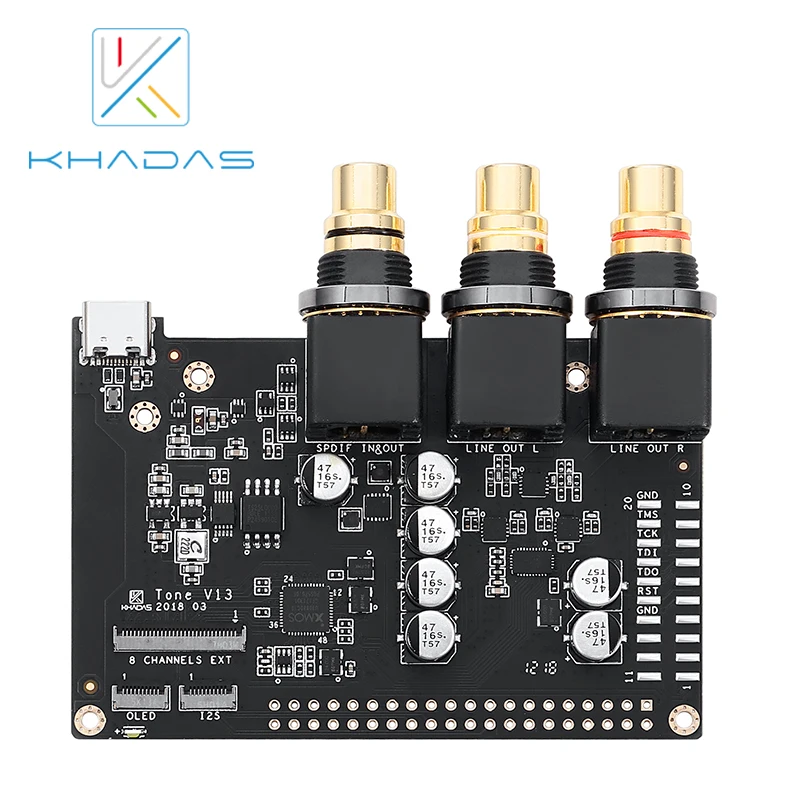

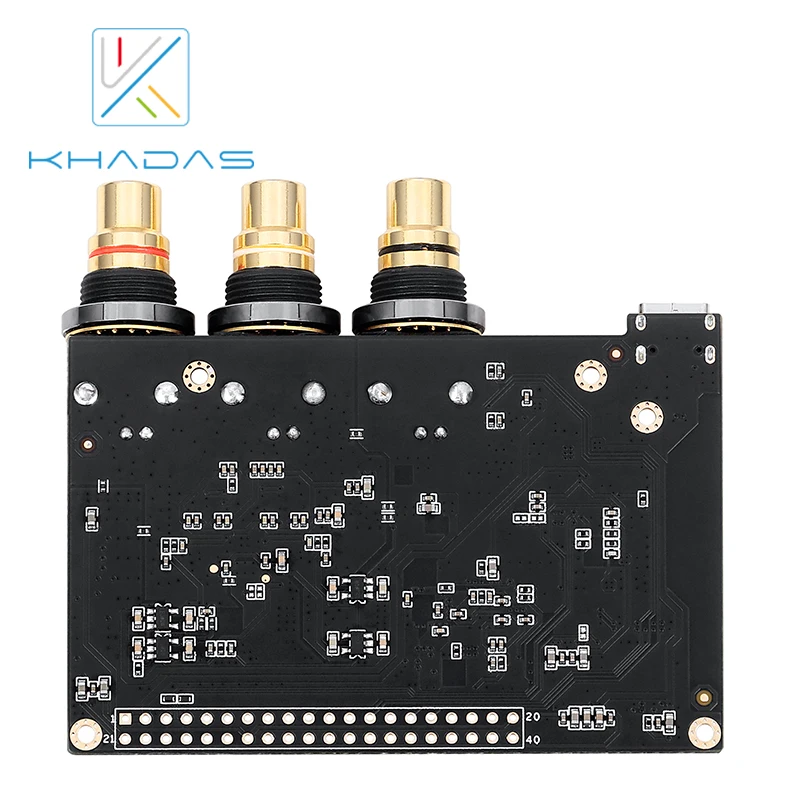

Model Number: Tone Board
Chipset: XMOS XU208-128-QF48 Octa Cores Core Share up to 500 MIPS
DAC: ES9038Q2M 32-Bit Stereo Mobile Audio DAC
THD+N: Less than 0.000337% @1KHz
SNR: More than 120dB @ 10Hz~20KHz
DNR: More than 120dB @ 10Hz~20KHz
Crosstalk: More than 127dB @ 10Hz~20KHz
Frequency Response: +/- 0.08 dB @ 10Hz~20KHz
Sample Rate: PCM: Up to 768KHz@32bit; DSD: Up to DSD256@1bit
Reference Clock Jitter: Less than 3ps
Data Clock Jitter: Less than 30ps
Line Out: 1x Red RCA for Right Channel 1 x White RCA for Left Channel
Indicator: White LED x1
Mounting Holes: Size M2 x 5
FPC Connector 30pin: 30-Pin 0.5mm Pitch: for 8 Channels Extension
FPC Connectors 10pin-A VIMs Edition: 10-Pin 0.5mm Pitch: for VIMs I2S Extension
FPC Connectors 10pin-B VIMs Edition: 10-Pin 0.5mm Pitch: for OLED Display
S/PDIF IN: Up to 192KHz
USB-C Port: Power Supply(5V/500mA) & USB 2.0 Data
40-PIN Header: Yes on VIMs Edition No on Generic Edition
20-PIN Header: Yes on VIMs Edition No on Generic Edition
Audio Formats: APE2 FLACOGGWAVACCALACMP3WMA etc.
Dimensions: 82.0 x 74.5 x 24.0 mm
