Specification

Brand Name: lintratek
Origin: CN(Origin)
Model Number: KW20C-GDW
Certification: CE
Certification: FCC
Certification: RoHS
Uplink:890~915/1710~1785mhz/1920~1980mhz: Downlink:935~960mhz/1805~1880mhz/2110~2170mhz
Work system: 2g+3g+4g (900/1800/2100mhz)

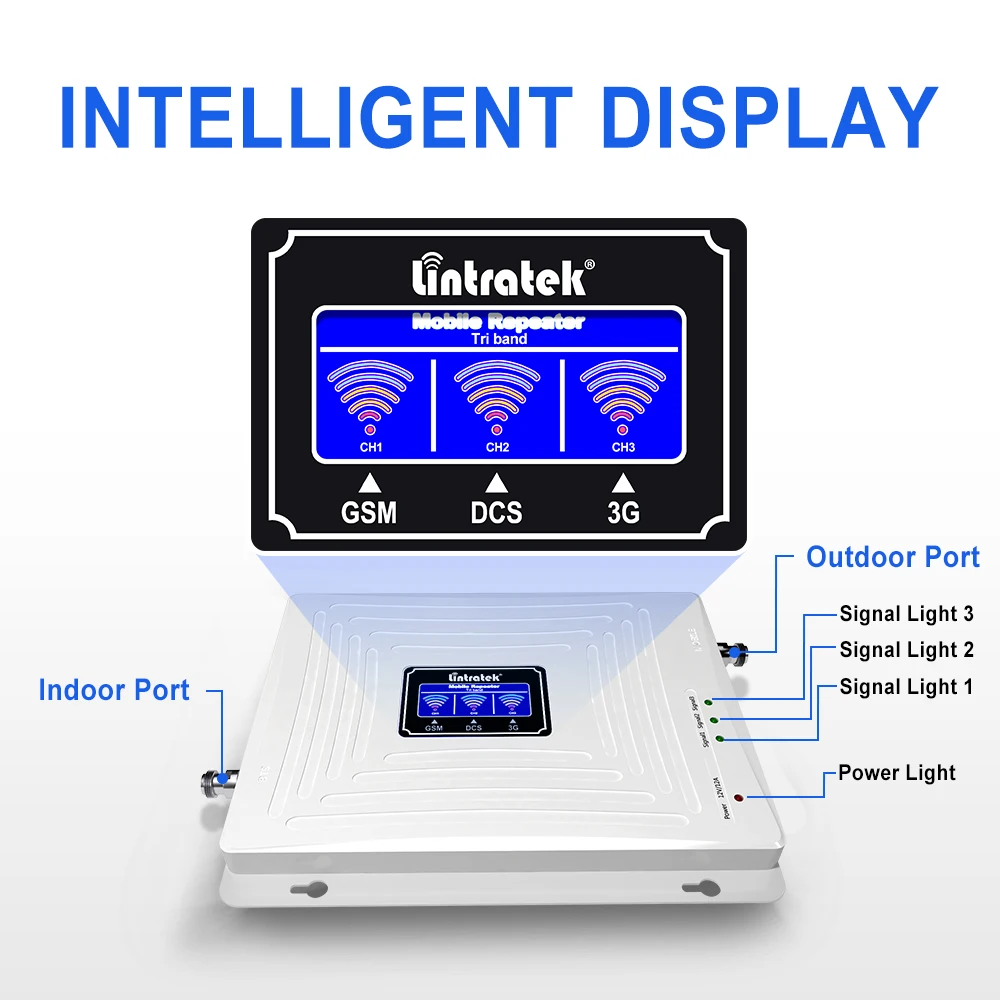

Feature: LCD Display; low radiationlow consumption
Cover Area: 200~800 Square Meters without any barrier
Output Power: 20dBm
Gain: 70dB
Power supply: AC 100~240V 50/60Hz ;DC 12V 2A
Type: Full kit . wall installation easy to install
External Log-periodic antenna: 10dB gain 800~2700mhz N female connector
Internal panel antenna: 9db gain700~2700mhz N male connector
Cable: 10m cable from China or 15m cable from Russian warehouse
Spurious Emission: 1GHz~12.75GHz≤ -30 dBm ; 9KHz~1GHz≤ -36 dBm
Intermodulation Products: 1GHz~12.75GHz≤ -30 dBm; 9KHz~1GHz≤ -36 dBm
VSWR: ≤1.4
MTBF: over 50000 hours
Power Comsumption: less than 24W
Impedance: 50 ohm
RF Connector (Repeater): N-Female
Cooling: Heatsink Convection cooling
Environment Conditions: IP40
Operating Temperature: -10℃ ~ 55℃
Bandmode: Band8 Band3 Band 1; GSMDCS LTE WCDMA
