Specification

Brand Name: lintratek
Origin: CN(Origin)

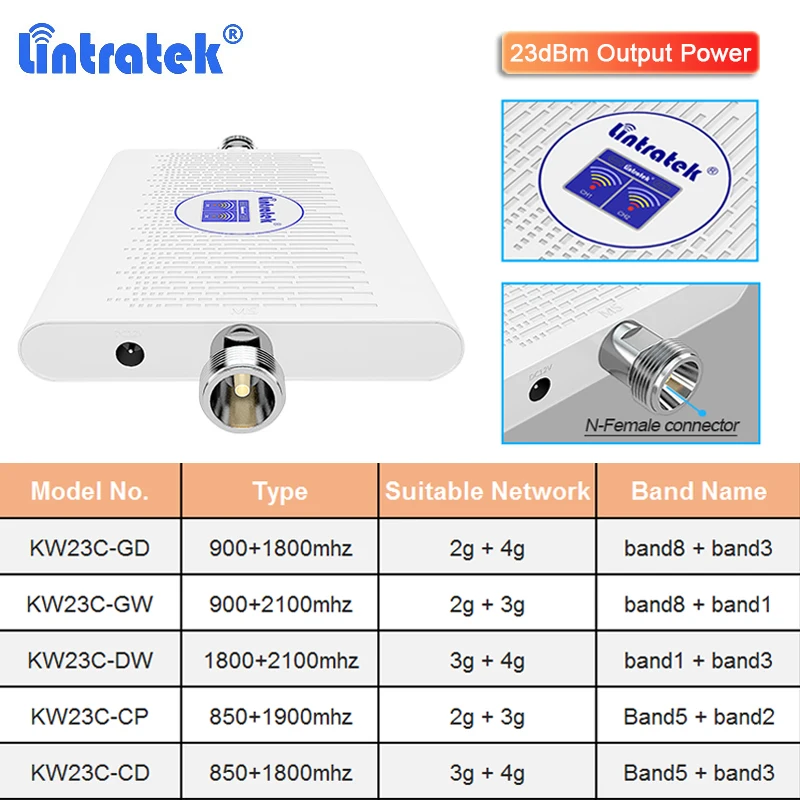

Model Number: KW23C-GD/GW/DW/CP/CD
Working system: CDMA850 GSM900 DCS1800 WCDMA2100 PCS1900
900+1800/2g 4g/band8+band3: Uplink: 890~915mhz/1710~1785mhz; Downlink: 935~960mhz/1805~1880mhz
900+2100/2g 3g/band8+band1: Uplink: 890~915mhz/1920~1980mhz; Downlink: 935~960mhz/2110~2170mhz
1800+2100/3g 4g/band3+band1: Uplink: 1710~1785mhz/1920~1980mhz; Downlink: 1805~1880mhz/2110~2170mhz
850+1900/2g 3g/band5+band2: Uplink: 824~849mhz/1850~1910mhz Downlink: 869~894mhz/1930~1990mhz
850+1800/3g 4g/band5+band3: Uplink: 824~849mhz/1710~1785mhz Downlink: 869~894mhz/1805~1880mhz
Power supply: AC 100~240V 50/60Hz; DC 12V 2A
Feature: LCD Display; Dual-band repeater
Gain: 70dB high gain
Output Power: 23dBm
Function: AGC funtion
Advantage: Lighter and powerful
Cellular Signal Booster: 2g 4g / 2g 3g / 3g 4g repeater
2g 3g cellular amplifier 900+2100: Enhance 2g 3g voice and call data communication
2g 4g cellphone booster 900+1800: Improve 2g call and 4g Internet voice network
3g 4g mobile repeater booster 1800 +2100: Boost 3g voice communication and 4g Internet

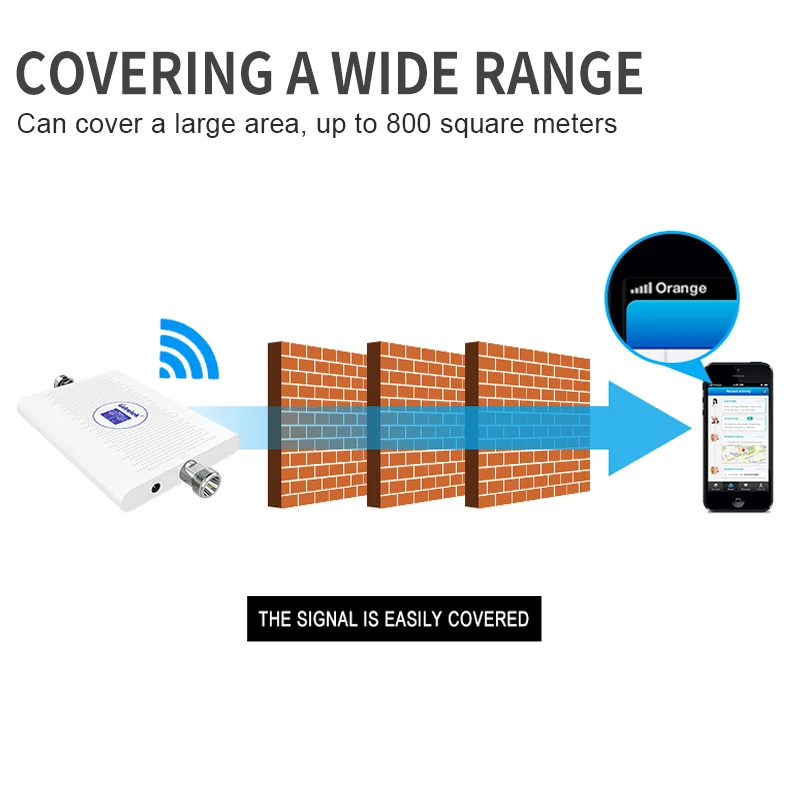

Coverage: 300~1000sqm without any barriers
Type: Full kit; easy wall installation
External antenna: 12dbi 8-units yagi antenna N-female connector
Internal antenna: 3dbi ceiling antenna with 2m cable N-male connector
Cable: 10m cable RG6 5D coaxial 50 ohm
Suitable countries: Russia Ukraine Spain Saudi Arabia Turkey France etc.
