Specification

Type: Cable Adapter
Package: Yes
Products Status: Stock

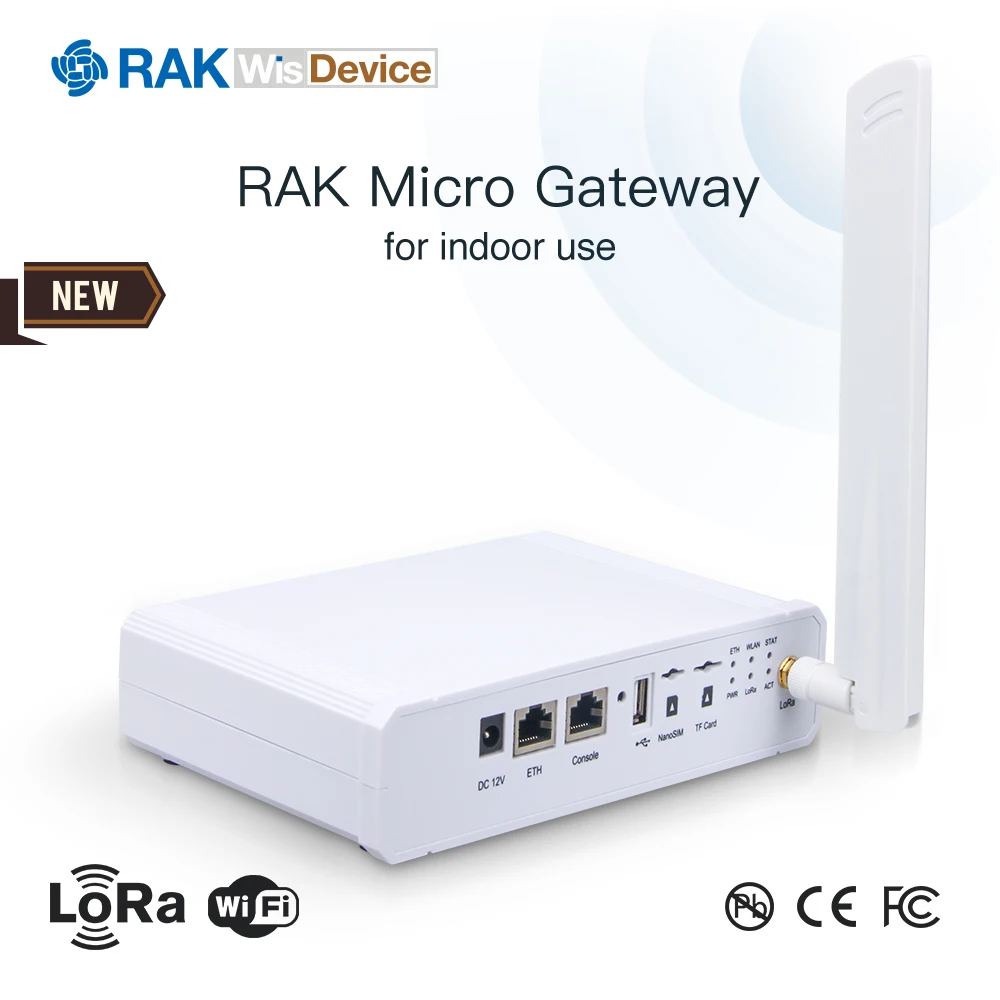

Model Number: RAK7258
Computing: MT7628 DDR2RAM 128MB
WiFi Feature 1: Frequency: 2.400 - 2.4835GHz
WiFi Feature 2: 802.11b/g/n
WiFi Feature 3: RX Sensitivity: -95dBm (Min)
WiFi Feature 4: TX Power: 20dBm (Max)

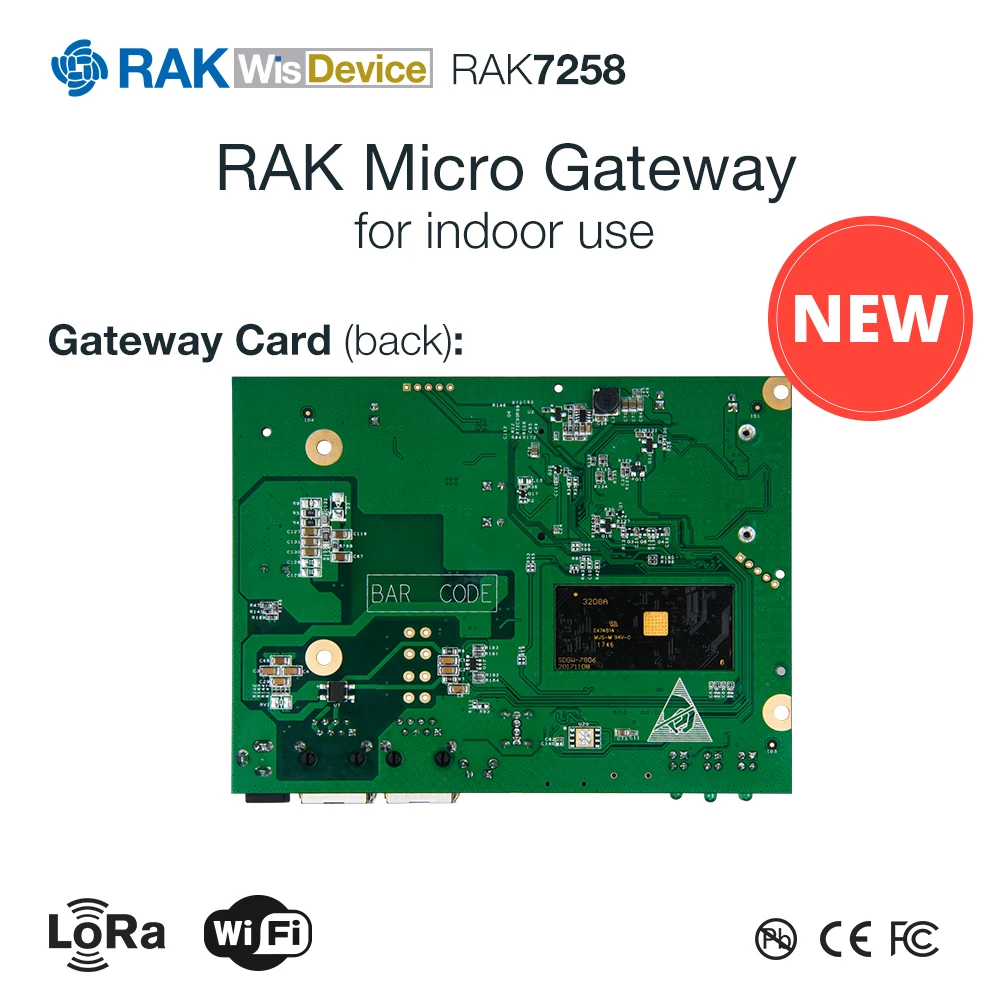

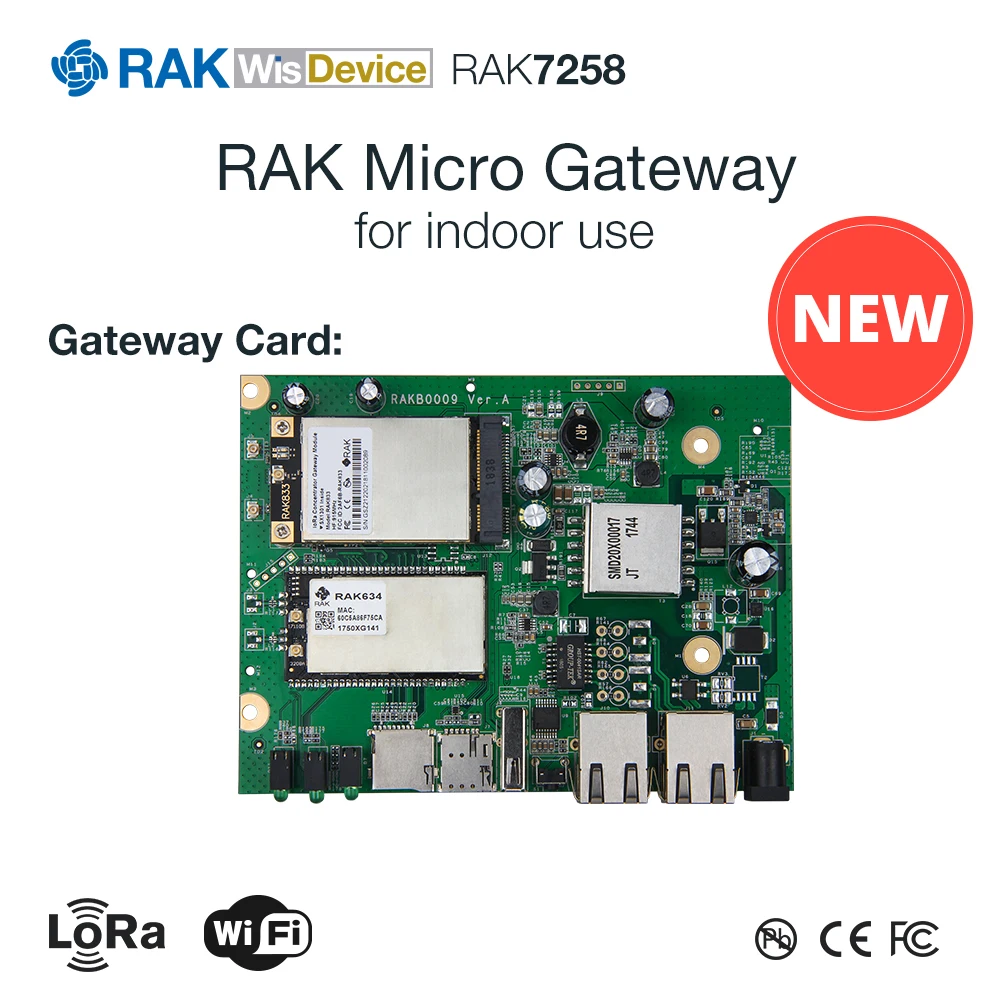

LoRa M: SX1301 Mini PCIe card
LoRa Feature 1: 8 Channels
LoRa Feature 2: TX Power: 27dBm (Max)
LoRa Feature 3: RX Sensitivity: -142dBm (Min)
Cellular: Optional NB-IoT /CatM / LTE 4G
Power Supply: PoE (IEEE 802.3af) 42~57VDC
Power Consumption: DC 12V-1A

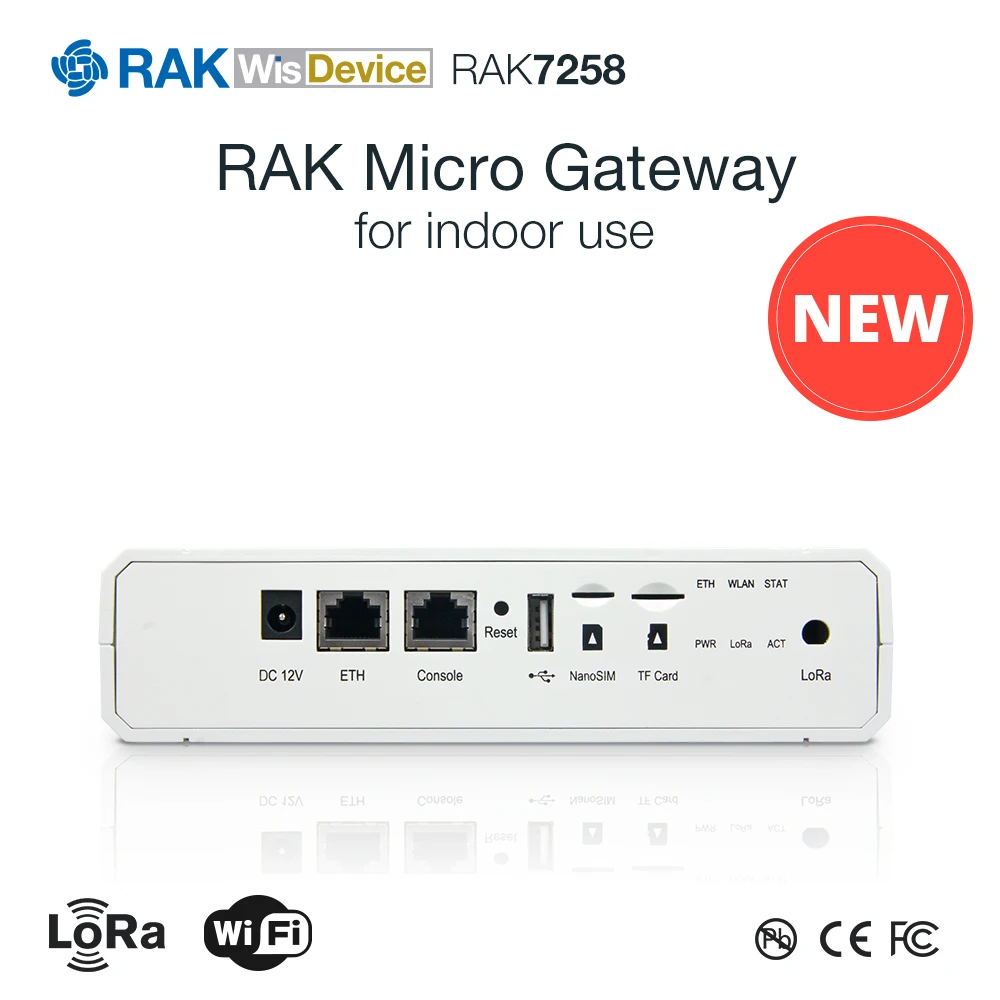

ETH: RJ45 (10/100M)
LoRa Antenna: 2dB
WiFi Antenna: Internal Antenna
Ingress Protection: IP30
Enclosure Material: Plastic
Operating Temperature: -10 to 55 degree centigrate

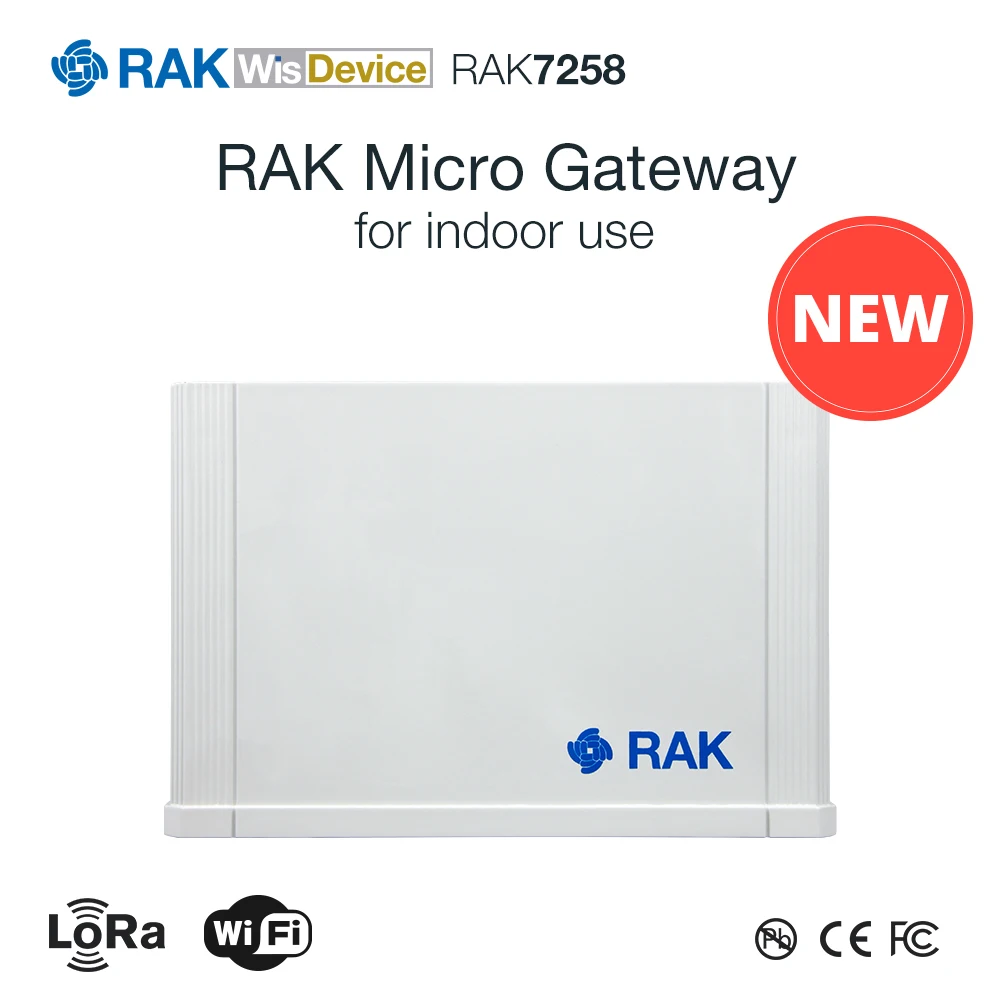

Installation Method: Ceiling or Wall mounting
