Specification

Brand Name: TZT
Model Number: FA-2
CH1 frequency range: 1Hz-300MHz
CH1 input impedance: 50 OHM/1 Meg-ohm
CH1 test speed: 11 bit/s@10MHz
CH1 power measuring accuracy: 0.5DB@10MHz
CH1 interface: BNC
CH2 frequency range: 200M-12.4G
CH2 input impedance: 50 OHM
CH2 input power: -20DBM to +13DBM@0.2-10G
CH2 Interface: SMA
Gate time: 0.1S/1S/10S
Internal frequency reference: 10MHz
Type of internal reference: OCXO
Internal reference aging: 0.5Hz/year

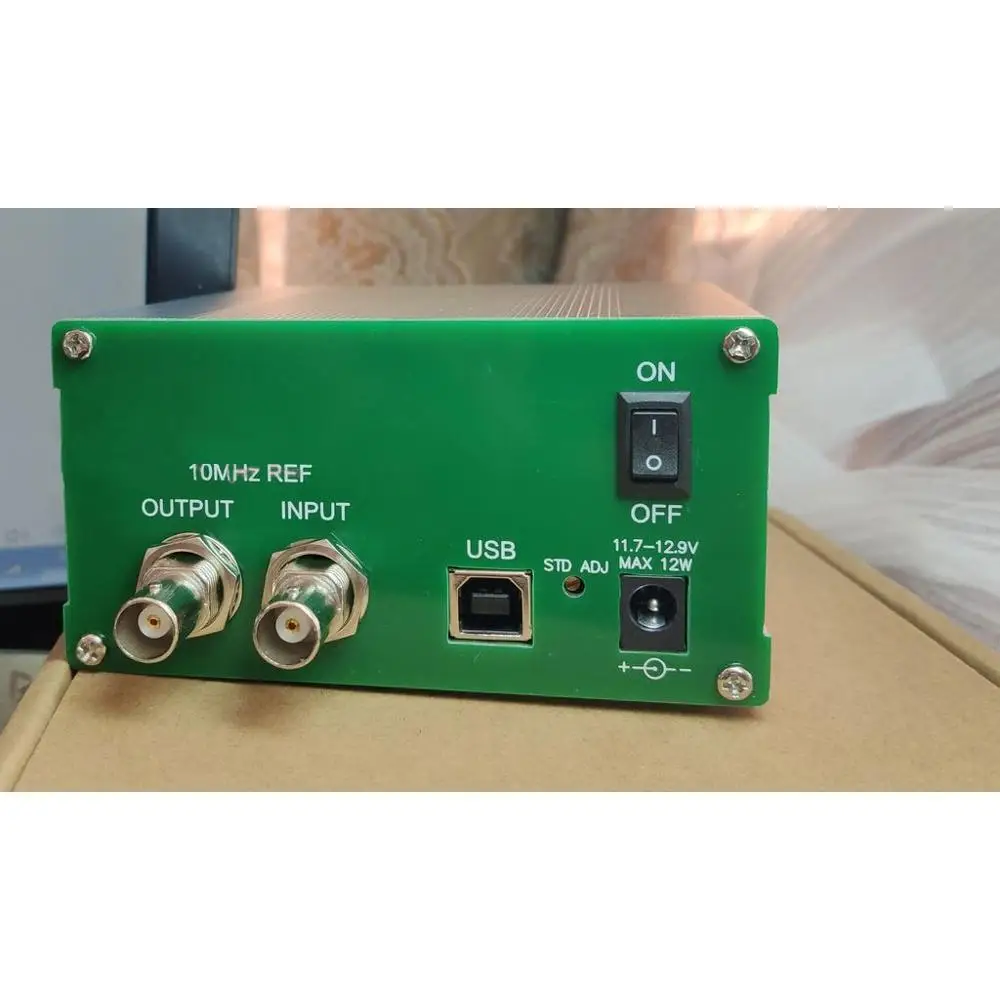

Power supply port: 11.7-12.9V
Start: <0.4A
Stability: <0.2A
Weight: 350g
