Specification

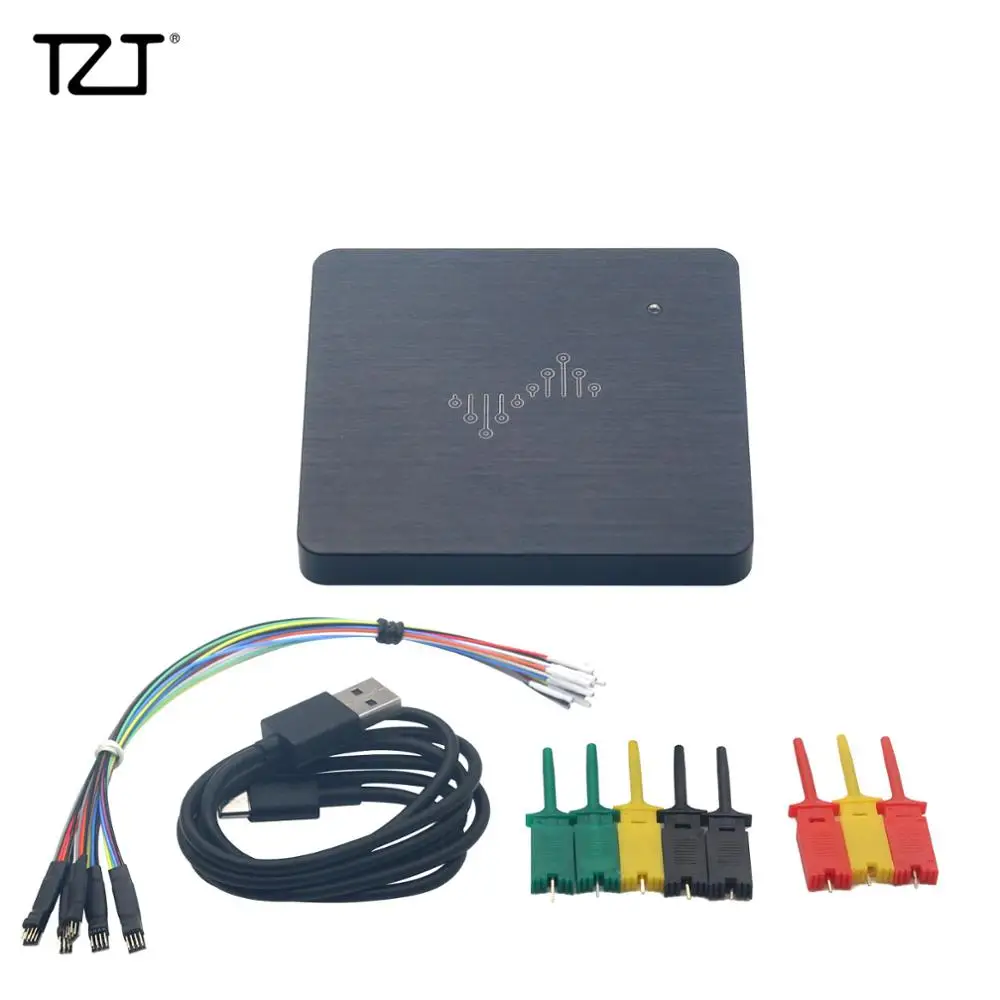

Brand Name: TZT

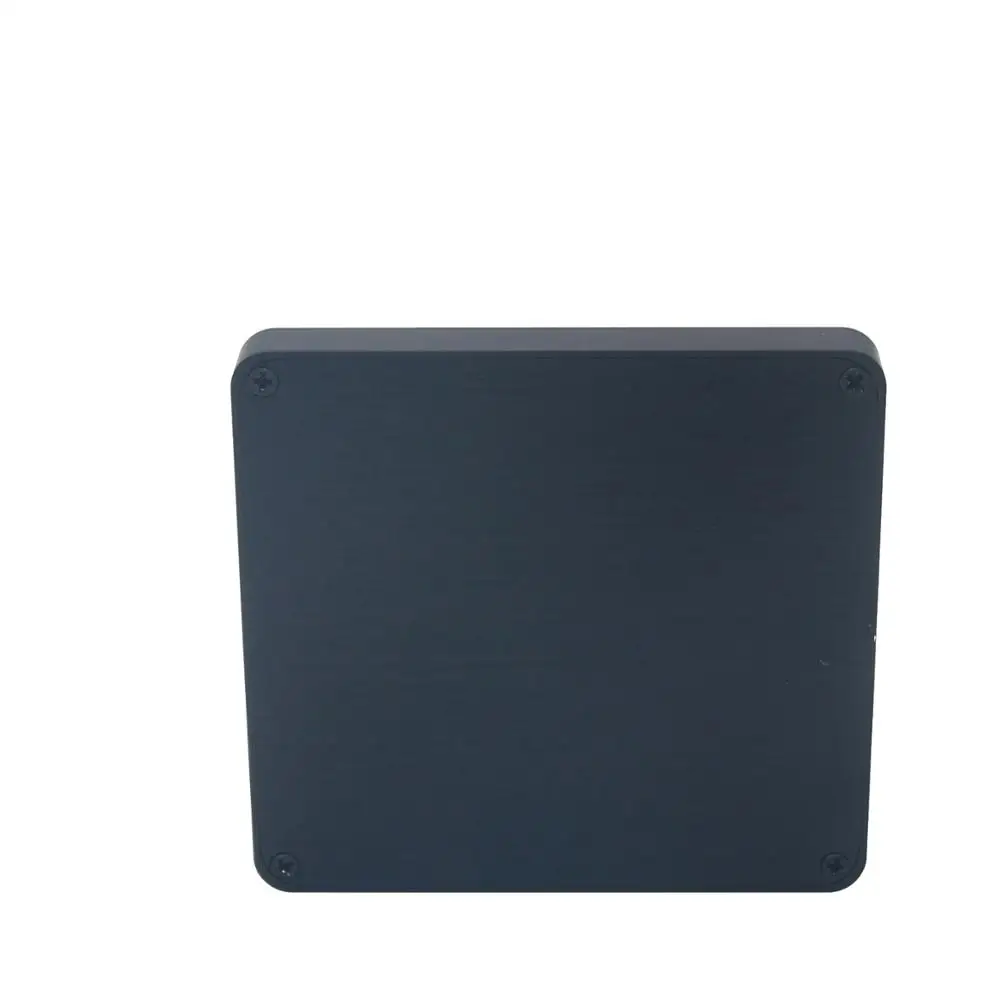

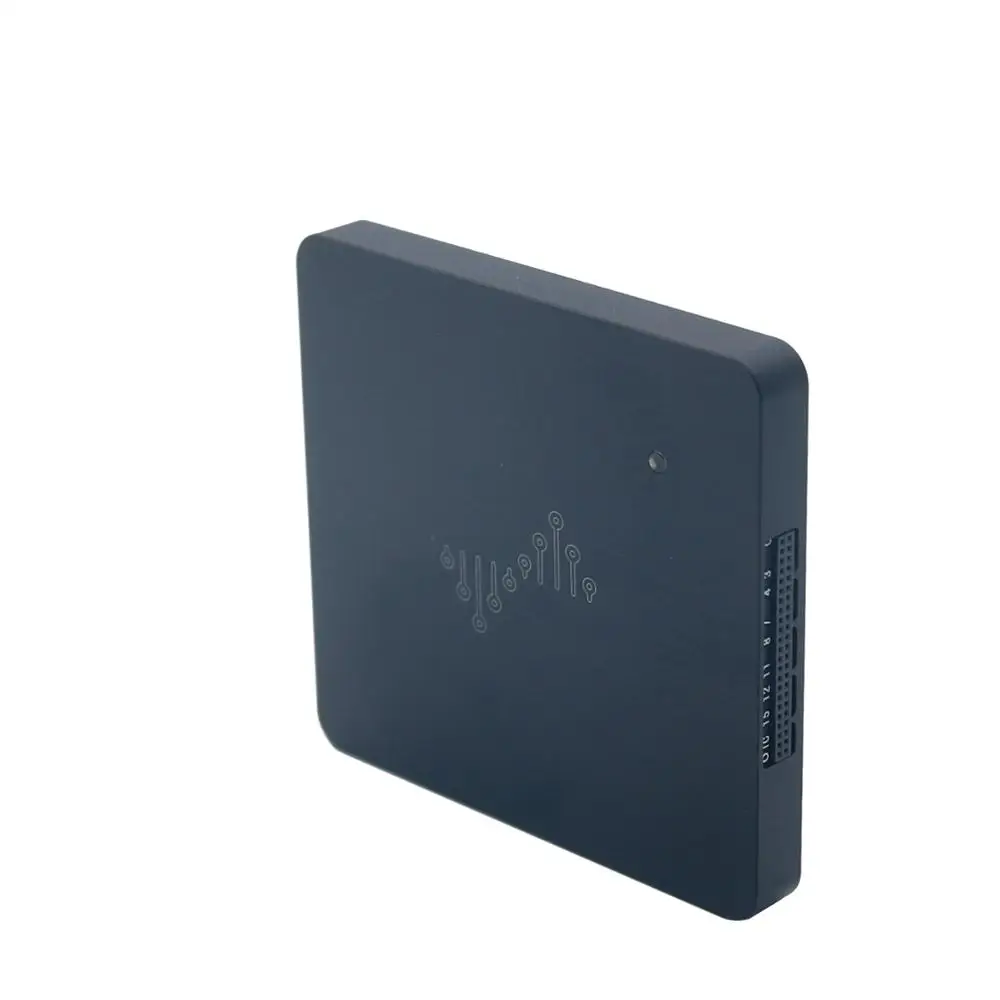

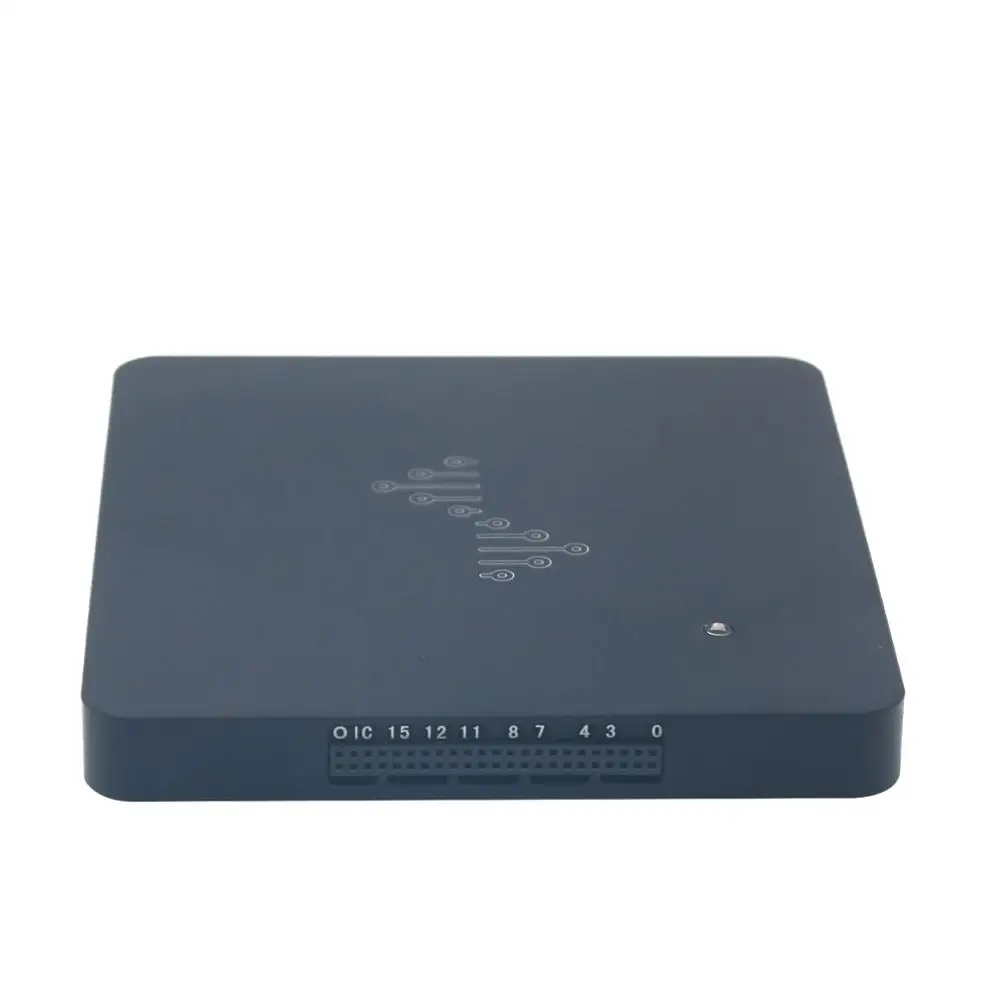

name: USB Logic Analyzer
use: Logic Analyzer
keywords: DSLogic Analyzer
Modes: Stream + Buffer (Buffer Mode: 100M@16 Channels)
Max. Sampling Rate 1: 100M@3 Channels; 50M@6 Channels
Max. Depth: 16G@Stream; 64M@Buffer
Hardware Memory: 65Mbits
Trigger: Simple Hardware Trigger
Threshold Value: 0-5V Adjustable
Voltage Range: ±30V
Input Impedance: 250K||7pF
Position Sampling: Max. 30M

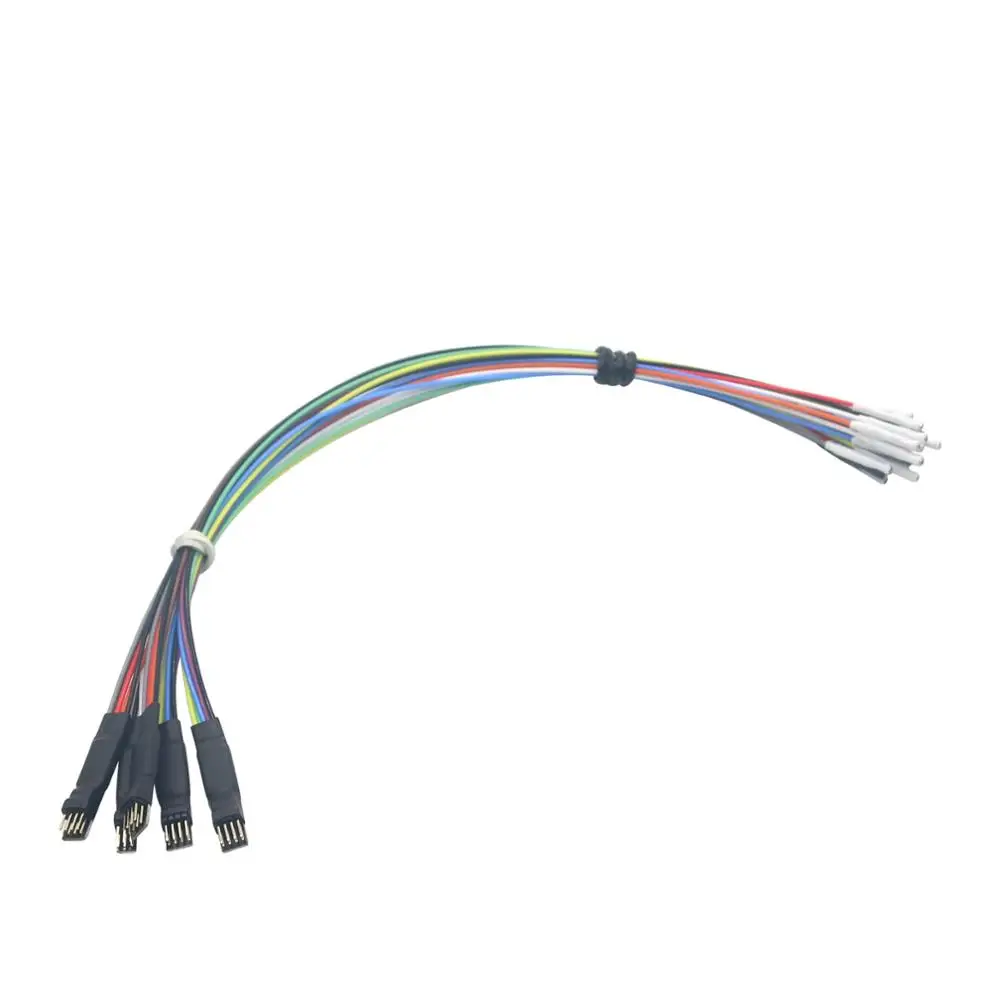

External Interfaces: Ordinary Dupont; 4 Groups to GND
Max. Sampling Rate 2: 25M@12 Channels; 20M@16 Channels
