Specification

Brand Name: TZT
Origin: CN(Origin)
keywords: UV RF Antenna Analyzer
keywords 1: SWR Meter Tester
keywords 2: Antenna Analyzer
keywords 3: SWR TESTER
Model No: PS100
Working Frequency: 137.5MHz~2700MHz/35MHz~2700MHz
Stepped Frequency: 1kHz
Display: 2.4inch TFT with resolution 320*240(QVGA)
Power Consumption: <1.5W
Charging Current: 400mA

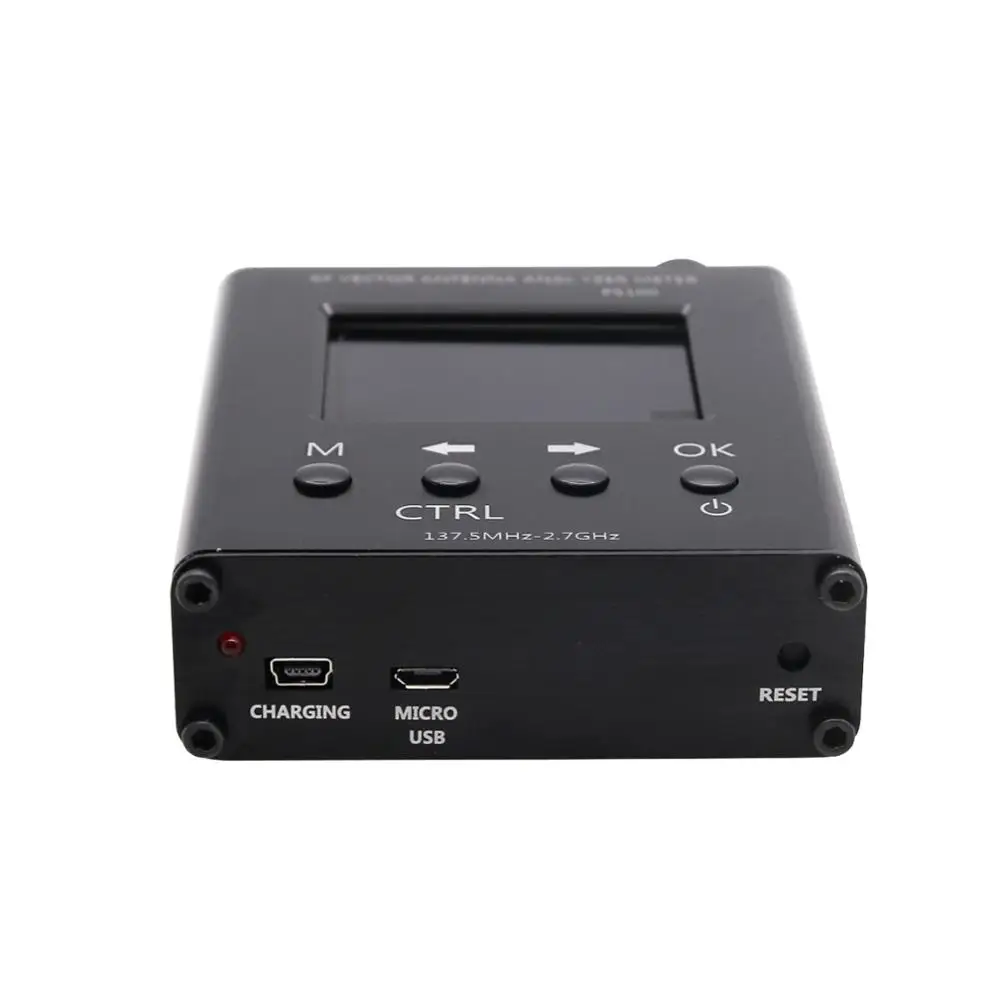

Charging Port: USB
Auto Power Off: Settable 5-60minutes

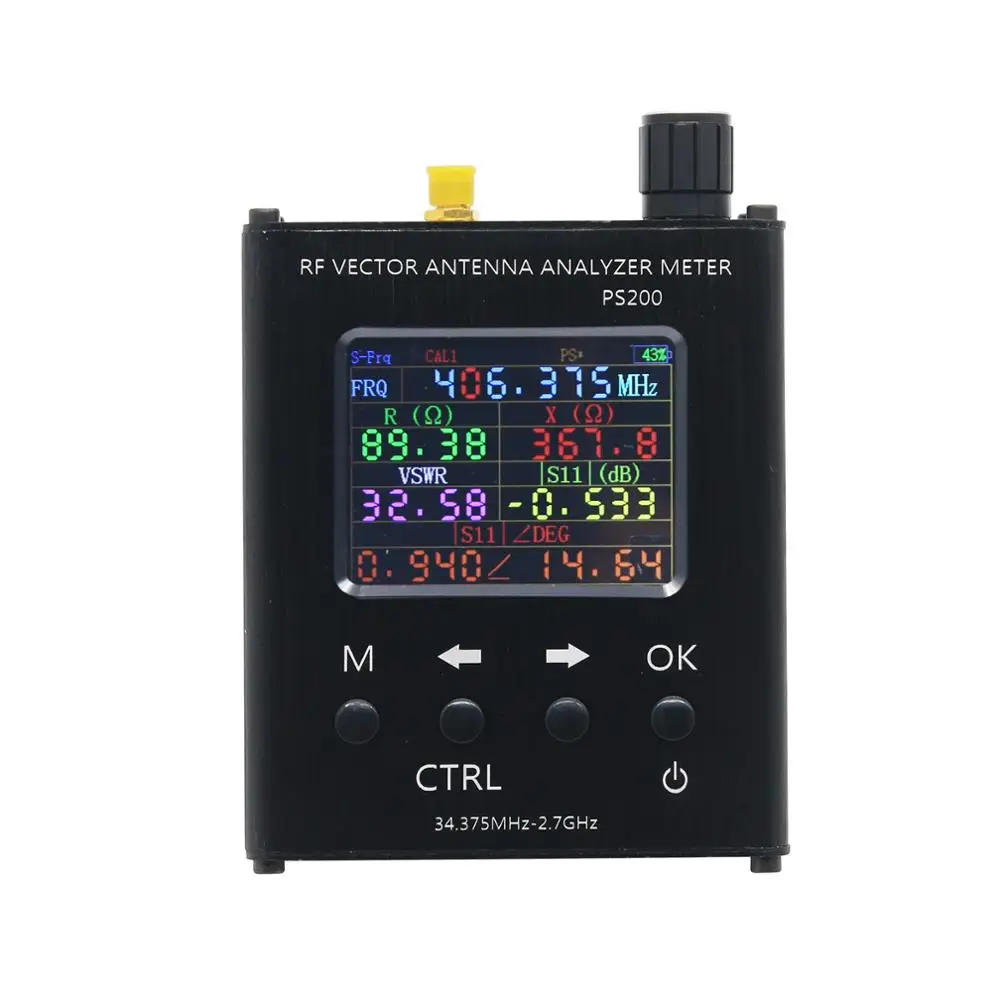

Measured Parameters: Impedance reactance SWR and S11
Resolution: 4-digit readings
Frequency Accuracy: <±10ppm
Connector: SMA-K
Impedance Measurement Range 1: 1Ω~1000Ω @frequency < 1300MHz
Impedance Measurement Range: 1Ω~300Ω @frequency >1300MHz (Impedance Absolute Value)
Standing Wave Measurement Range: 1~65 @frequency < 1300MHz;1~10 @frequency >1300MHz
S11(dB)Measurement Range: 0dB to -50dB
For Impedance: Impedance absolute value x 5%±0.1Ω (Z<200Ω <1.5GHz)
For Standing Wave: < Effective readings x 10%±0.1
For S11: 0.1dB/5° (0dB to -10dB)
Directivity: < 35dB (140MHz to 2GHz after calibration); < 30dB (2GHz to 2.7GHz)
Scanning Points: 280
Output Level: -18dBm
Working Temperature: 0℃ to 40℃
Atmospheric Pressure: 860hPa~1060hPa
Model: N1201SA/N1201SA+
