Specification

Brand Name: TZT
keyword: GPS
NAME: GPS Receiver
keyword 1: Sine Wave GPS Receiver
keyword 2: GPS Tame Disciplined Clock
Mode: PLL-GPSDO
POWER: DC11.7-12.9V/<=5W
GPS ANT POWER: DC3.3V
1PPS OUTPUT: SQUARE WAVE3.3Vppsynchronize UTC time
10M OUTPUT: SINE WAVE6dBm+-2dB
RS232 OUTPUT: GPS NMEA SIGNAL9600BPS
ACCURACY: P-P:0.03Hz@10MHzFREQUENCY MEAN:0.0001Hz@10M
SIZE: WxHxD=138x25x65mm(INCLUDE BNC CONNECT)

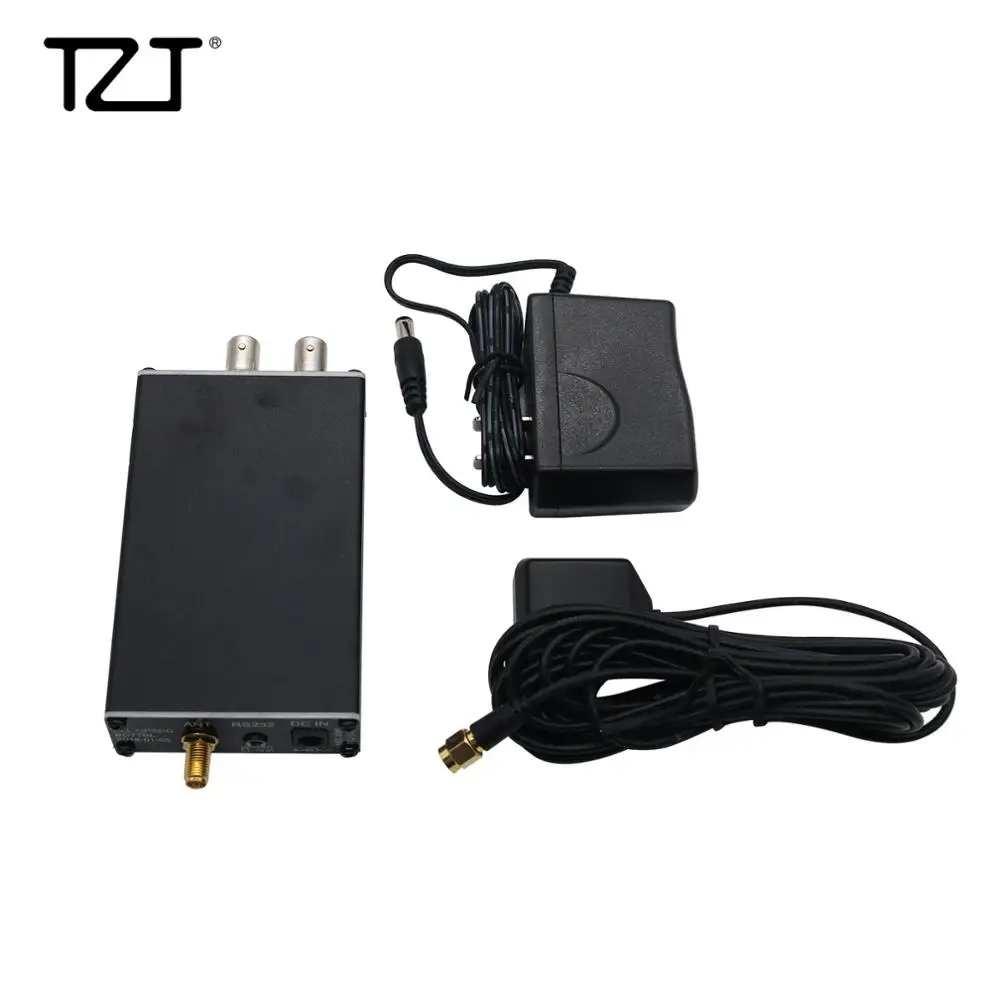

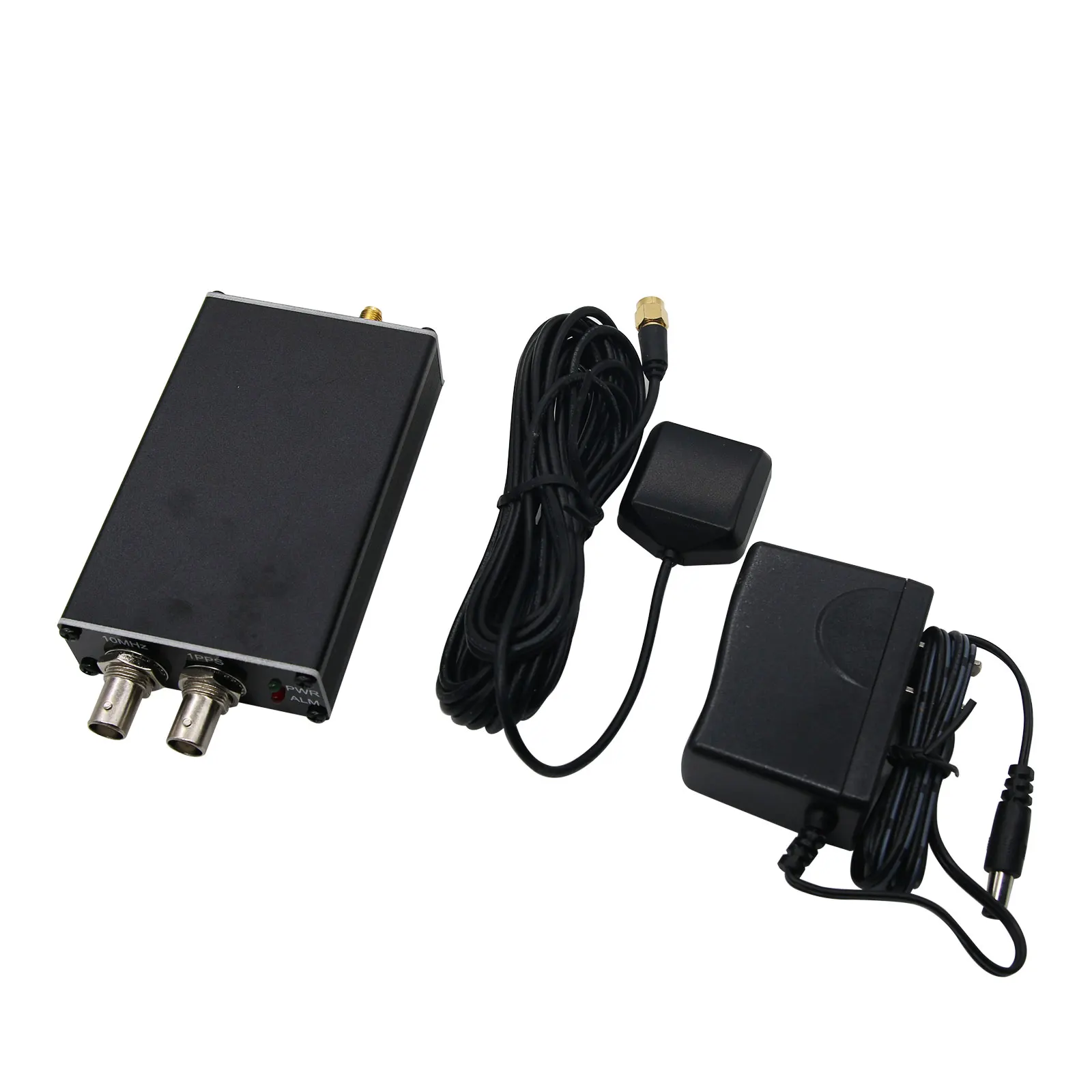

ACCESSORY: AC110-220-DC12V ADAPTER5 m GPS ANT.

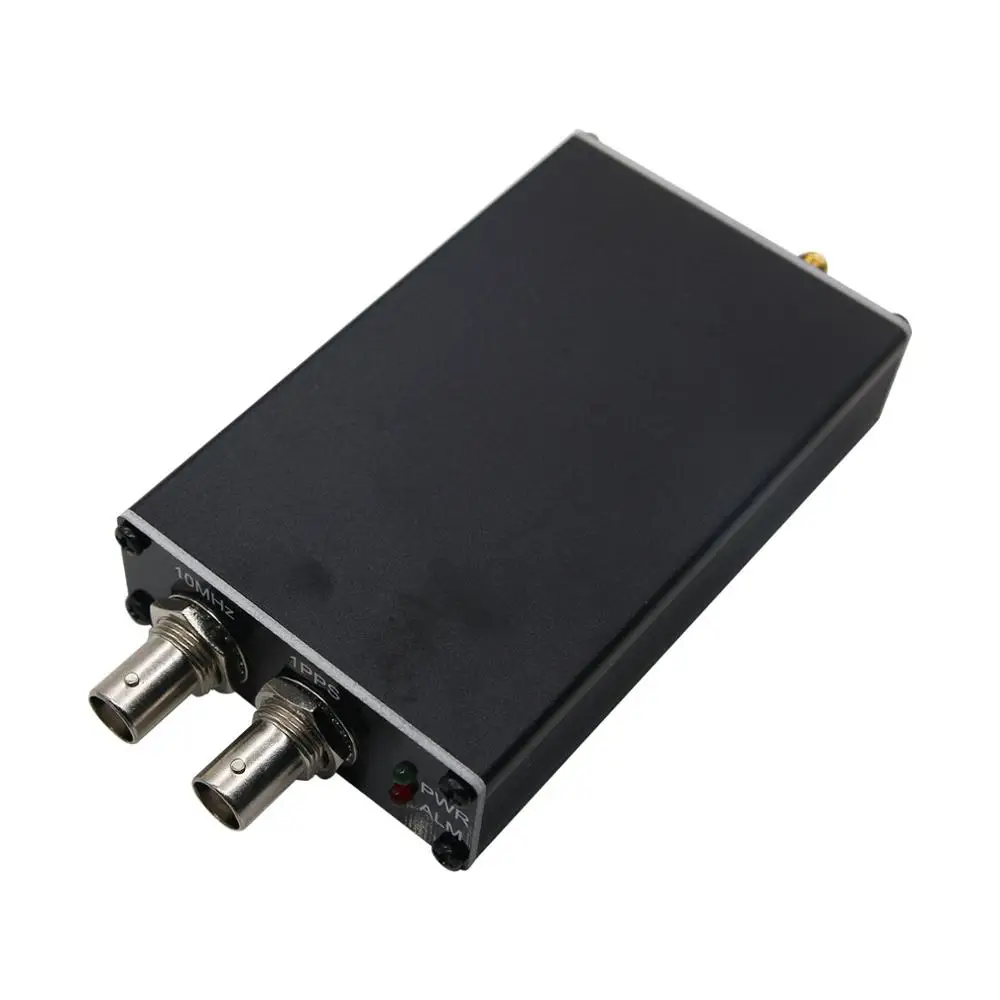

Front panel: 10MHz:10M sine wave output
1PPS: 1PPS pulse outputrising edge synchronize UTC time
PWR: power/GPS lock indicateflash:GPS unlock;on:GPS lock;off:not power
ALM: on:frequency deviation accuary>0.1Hz

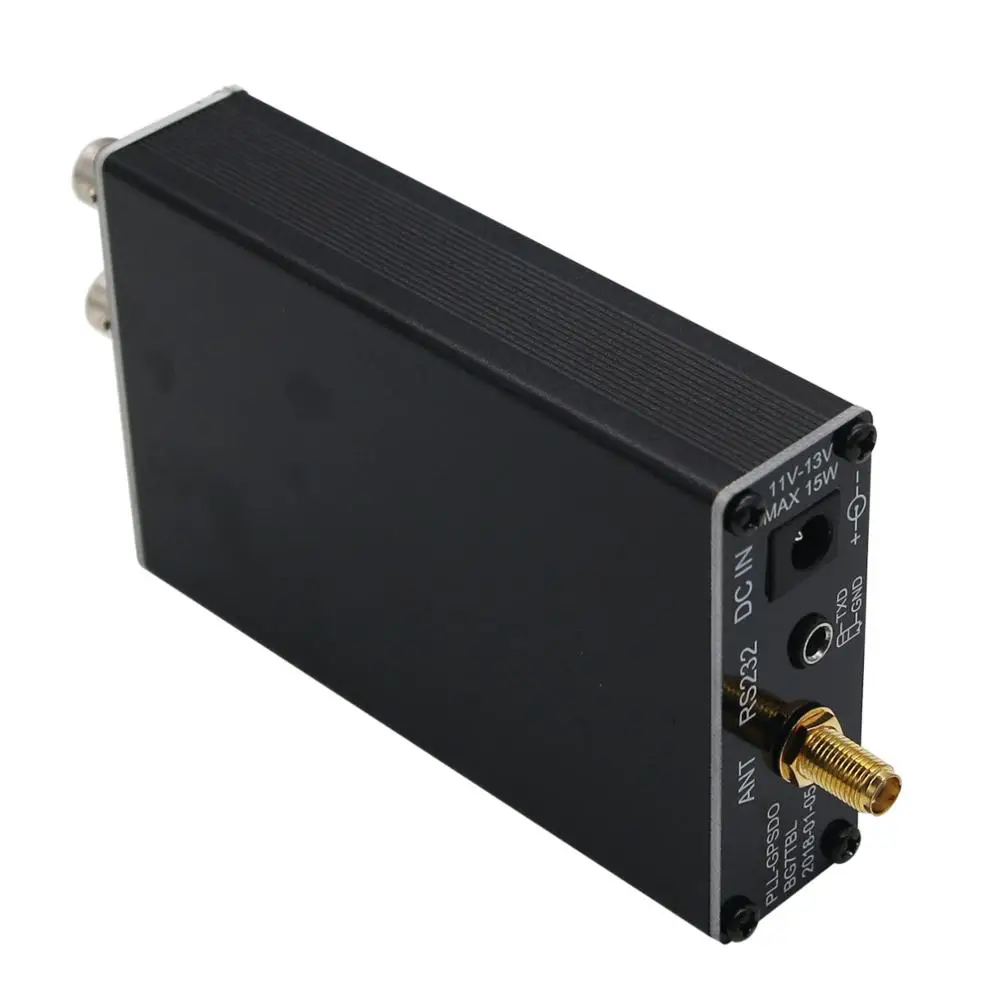

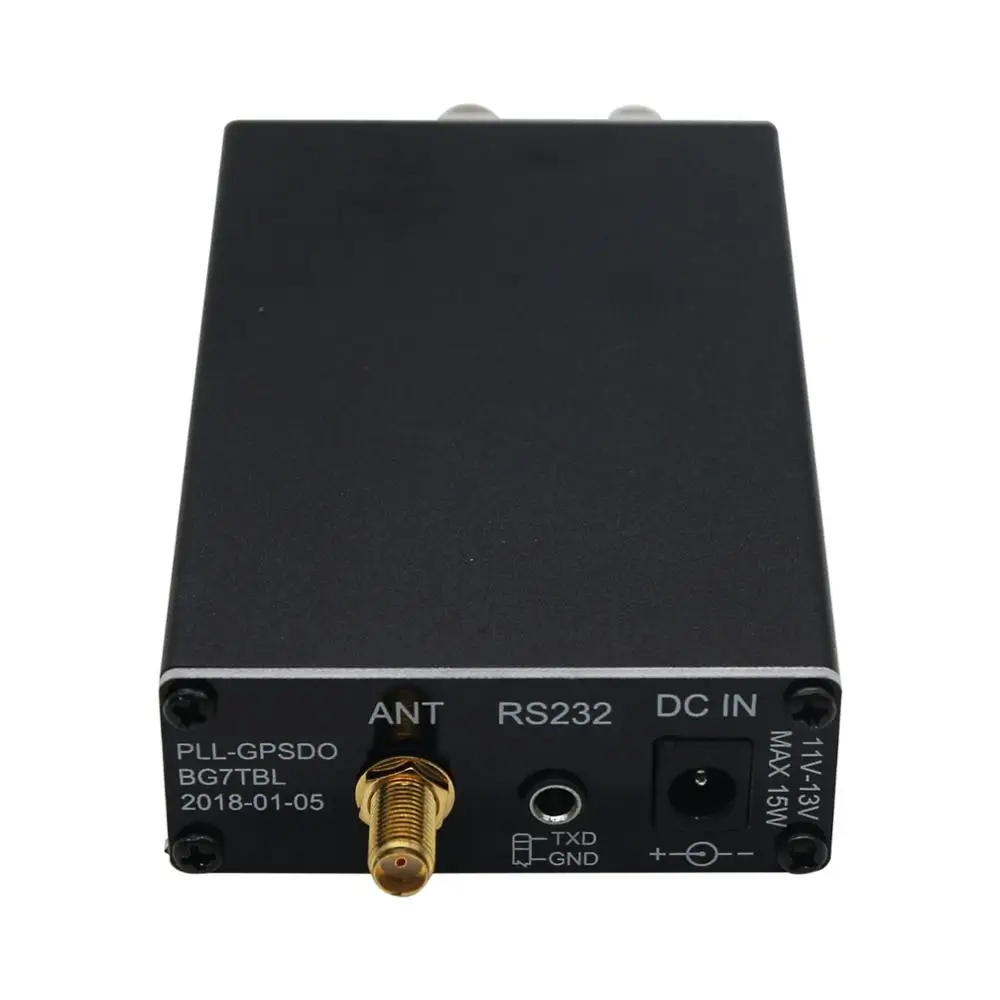

Rear panel: DC-IN:12V power input5.5-2.1 socketinside is positive
RS232: GPS NMEA output 9600BPScompate RS232 signal
ANT: GPS antenna inputoutpu 3.3Vinside current limite
