Specification

Brand Name: UNI-T
DIY Supplies: Electrical
Origin: CN(Origin)
Model Number: UT89X
AC Current: 60mA/600mA/20A
AC Voltage: 6V/60V/600V/1000V
Measuring Resistance Range: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
Operating Mode: Auto/Manual
Measuring Inductance Range: /
Display Type: Digital Display
DC Current: 60uA/6mA/60mA/600mA/20A
DC Voltage: 600mV/6V/60V/600V/1000V
Measuring Capacitance Range: 6nF/60nF/600nF/6uF/60uF/600uF/6mF/60mF/100mF
Dimensions: 175mm x 81mm x 48.5mm
Operating Temperature: 0 - 40 ℃

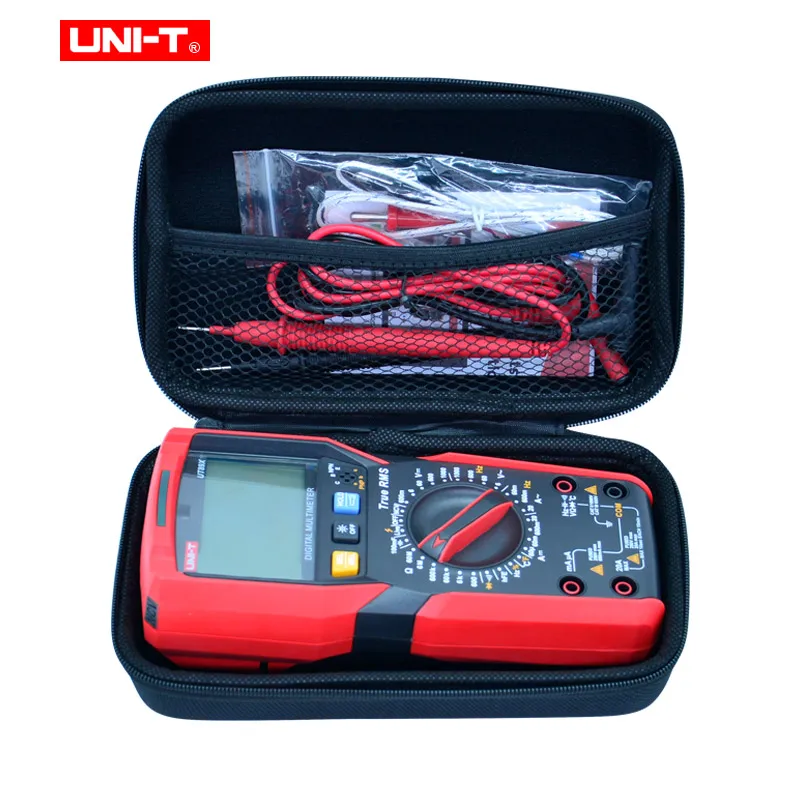

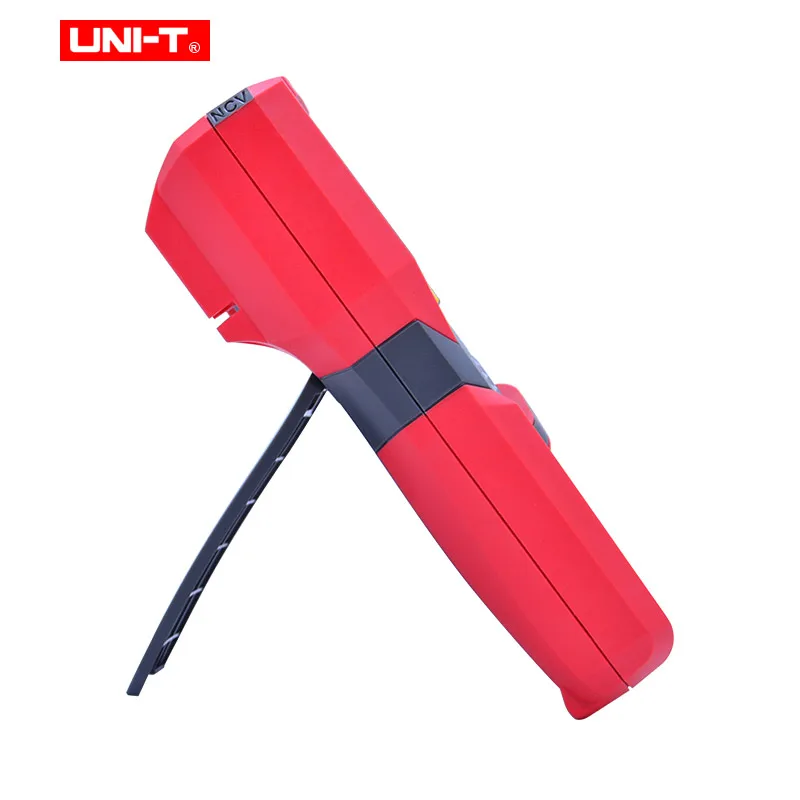

Item: Multifunction digital multimeter tester
True RMS: Yes
AC Voltage frequency response: 45~1000Hz
AC Current frequency response: 45~1000Hz
temperature test: -40 to 1000 Degree(Only UT89X)
Diode/Continuity test: Yes
Transistor hFE: Yes
