Specification

Brand Name: YOUYSI
Origin: CN(Origin)
Model Number: YOUYSI-T9

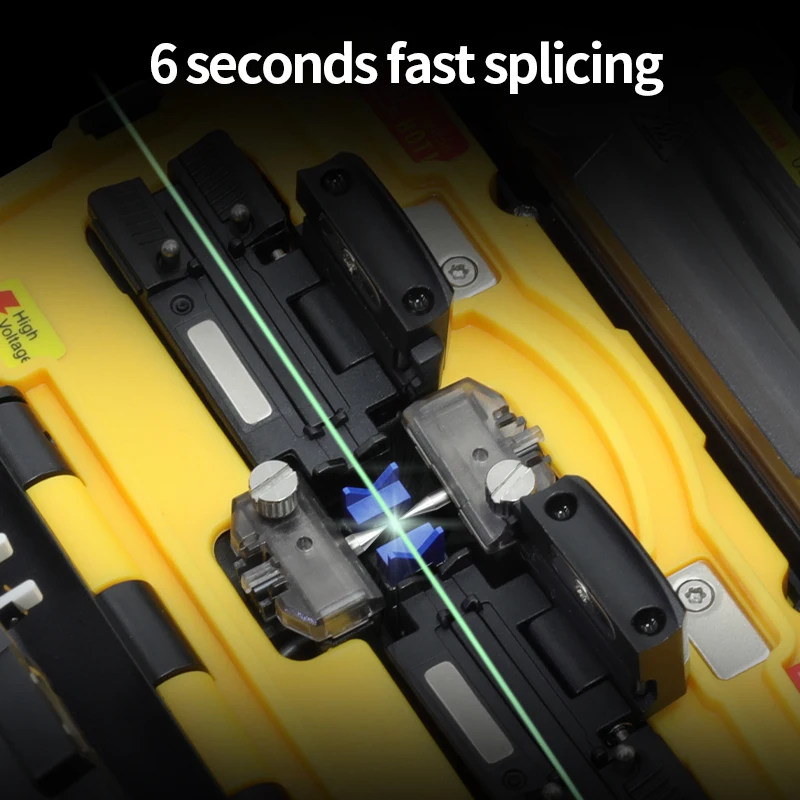

Splicing Time: 6s

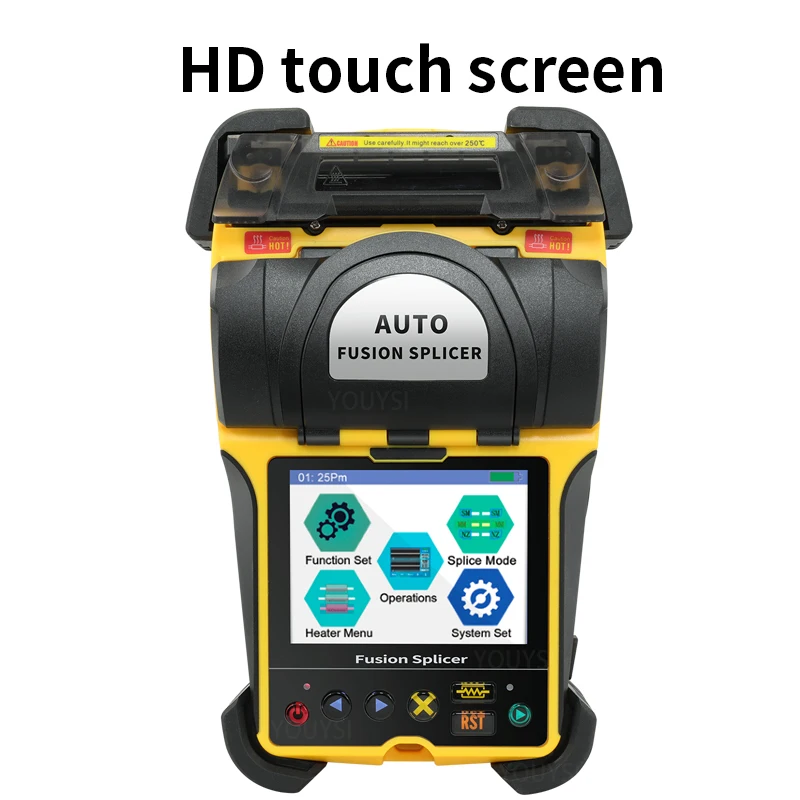

Display: 3.5" high resolution display with touch screen
Applicable fiber: SMMMDSNZDS
Heating Time: 13S
Appicable Fibers: SM(G.652&G.657)MM( G.651)DS(G.653)NZDS(G655)
Compatible Fiber/Cable: 0.25-3.0mm/Indoor Cable
Cleaved Length: Coating Diameter:0.125-1mm/Cladding diameter:80-15um
Splicing Mode: Preset 41 splicing modesstorable 100 modes
Typical Splice Loss: SM:0.03dB/MM:0.02dB/DS:0.05dB/NZDS:0.05dB/G657:0.03dB
Splicing Time: SM fast mode:6s
Estimated Splice Loss: yes
Protection Sleeve Length: 20-60mm
Heating tank: Preset 5 kings of thermal heating tube:20/30/40/50/60mm
Heating Time: Fast heating time:13sTypical heating Time:30s
Return Loss: ≥60db
Lighting: 2 powerful white LEDs
Results Storage: 20000latest records&200 images
Tension Test: 1.5-2.0N
Fiber View&Magnification: XYXYX/Y:380xMagnification
Power Supply: AC Input 100-240VDC Input 12-15V
Battery capacity: 2200mAh battery capacity
Heating times: typical above 120 times
Operating Methods: Button/Touch Screen
Electrode Life: 5000ARCS
Terminal USB: 2.0
Weight: 1.15KG(including battery)
Dimension: 132*205L*98Hmm
Operating Condition: 0-5000m above
Storage Condition: 0~95% ;battery storage:-20~30°c
